Güstrower High Capacity Fertiliser and Lime Spreader
Güstrower High Capacity Fertiliser and Lime Spreader
Overview:
- High accuracy with spreading widths of upto 40m.

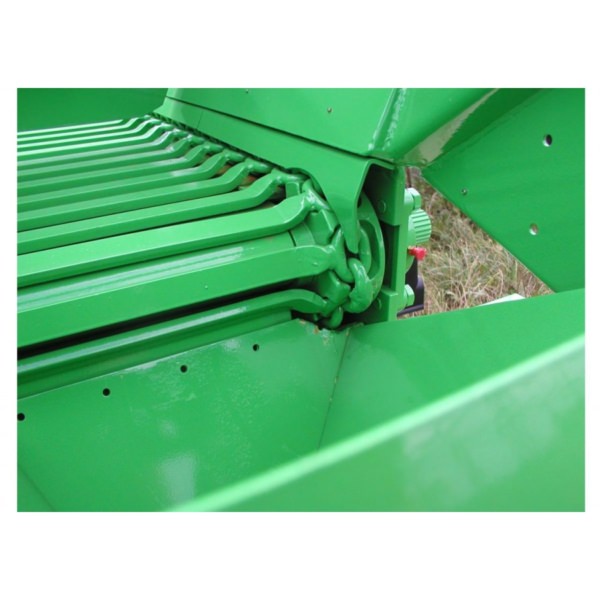

- Unique scraper chain gives high accuracy feed, even of difficult to spread material

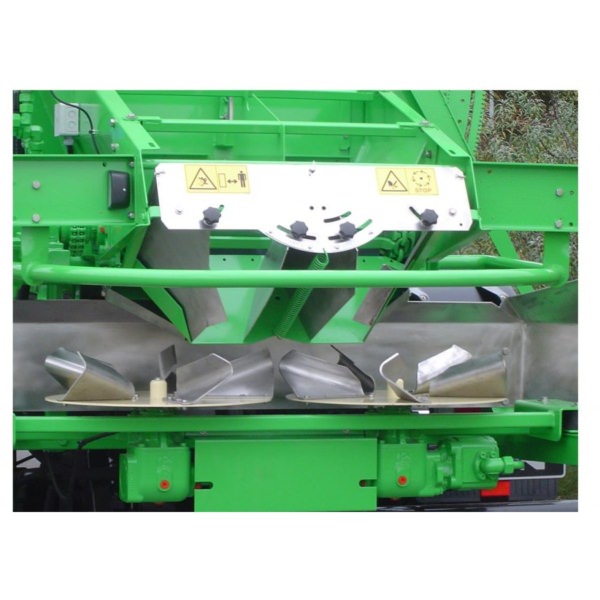

- Unique independent hydraulically driven spreading discs with constant speed drive for accurate spread pattern.
- Capacities from 5 to 14 cubic metres.
- Able to spread all kinds of fertilisers including poor quality lime, poultry litter & compost.
- Electronic control of application with minimal maintenance through a long working life time.
- Application rates from 40 to 16000kgs per Ha.
Product Images
Main features
- Wheel track 1.80 m ,speed 25 km/h
- Straight drawbar & Jack (UK option low hitch & slipper, standard in UK)
- Twin circuit air brake system and parking brake
- Constant application rate irrespective of speed, electronic control of application rate with hydraulically driven scraper chain
- Computer with 50 job memory and serial interface
- DGPS variable rate & sensor com patible
- +/- on the move adjustem ent of application rate in percentage steps set by operator
- Disc drive from high pow er self contained hydraulic drive system , PTO driven width wide angle drive shaft
- Drive of scraper chain/belt by tractors own hydraulics
- 40m twin disc spreading system with double overlap spreading
- Application rate from 40 - 16,000 kg/ha (scraper chain) or 30 - 3,000 kg/ha (belt)
- Border spreading, mechanical
- Regulation of spreading discs speed
- Control equipment in stainless steel, vanes standard material
- Splitter to ensure even fertiliser application when operating on side slopes
- Fertiliser control/guide plates in stainless steel
- Connection lead and pipes/hoses to tractor
Product Specification
| Trailed high capacity spreader | GDK 5.000 | GDK 6 .000 | GDK 7.000 | GDK 8.000 | GDK 10.000 | GDB 6.000 |
|---|---|---|---|---|---|---|
| Conveyor system | Scraper chain | Scraper chain | Scraper chain | Scraper chain | Scraper chain | Belt Body |
| Capacity | 5 m³ | 6 m³ | 7 m³ | 8 m³ | 10 m³ | 6 m³ |
| + Hopper extension (300mm) | 7m³ | 8.5m³ | 10m³ | 11m³ | 14m³ | 8.5m³ |
| + Hopper extension (450mm) | 8m³ | 10m³ | 11m³ | 12.5m³ | 16m³ | 10m³ Total |
| weight * (allowed) | 12,000 kg | 12,000 kg | 12,000 kg | 12,000 kg | 22,400 kg | 12,000 kg |
| Payload * at public roads | 8,800 kg | 8,600 kg | 8,500 kg | 8,200 kg | 14,300 kg | 9,600 kg |
| Technical payload * | 10,920 kg | 10,650 kg | 10,900 kg | 11,000 kg | 18,500 kg | 10,500 kg |
| Total length | 5.54 m | 6.20 m | 6.70 m | 7.20 m | 8.80 m | 6.70 m |
| Measurements of bin (length x width) | 3.0 m x 2.28 m | 3.6 m x 2.28 m | 4.1 m x 2.28 m | 4.65 m x 2.28 m | 6.0 m x 2.28 m | 4.0 m x 2.28 m |
Güstrower High Capacity Fertiliser and Lime Spreader Video
Frequently Asked Questions
The Güstrower High Capacity spreader is a trailed spreader for fertiliser, lime, gypsum, compost, chicken litter and similar bulk materials. A hydraulically driven scraper chain feeds even difficult, sticky material accurately to twin hydraulically driven spreading discs, giving application rates from 40 to 16,000 kg/ha on the scraper chain models.
The Güstrower twin-disc system spreads fertiliser up to 40 m with double overlap, and optional U-type four-vane discs reach up to 42 m (urea 36 m). Lime discs spread up to 18 m. Disc speed is adjustable, mechanical border spreading is standard, and a splitter helps keep application even on side slopes.
Do you have any further questions?
Do you have any questions regarding this model or any of our other used machinery stock? Please give a call using the number below or email us.
Please contact us to check the machine location before travelling.
-
