Mini Flail Mower Collector

Mini Flail Mower Collector

Estate, Local Authorities, Mower Collectors, Mowers
The Ryetec Mini Flail Mower Collector is a simple and effective solution for cutting and collecting grass. Its patented cutting flail design cuts the grass and blows it directly into the hopper, reducing the risk of blockages. This versatile machine is ideal for various grass types, from lawns to conservation areas, and is also capable of scarifying.

Overview:

  • Available in a range of widths from 1m to 1.6m (see product brochure for moreinformation)
  • Designed for versatile grass cutting and collection, including lawns, conservation areas, and scarifying.
  • Patented cutting flail design minimizes blockages.
  • Lightweight yet robust construction, safe for use on small tractors with full hoppers.
  • Low-profile design suited for areas with height restrictions, such as orchards and gardens.
  • Effective for picking up leaves, litter, and hedge clippings, with mulching to reduce volume and speed up composting.
  • Hydraulic or manual tip mechanism for easy unloading.
  • Built on a heavy-duty chassis with a 3-point linkage, requiring only 25-35hp to operate.
  • Optional front roller available for precise scarifying depth control.

Product Images

Main features

  • Hydraulic and Manual Tip Options
    The standard 'C/CH' models feature a hydraulic tipping mechanism, allowing for effortless unloading of the collected material directly from the tractor seat. The economy 'CE' models are equipped with a manual tipping option, providing a reliable alternative for tractors without an external hydraulic supply.
  • Heavy Duty Drive Line with Overrun Clutch
    The heavy-duty drive line includes an overrun clutch, which protects the mower’s transmission by allowing the flail rotor to spin down gradually after disengaging the PTO. This feature enhances the longevity and durability of the machine.
  • Flail Inspection Door
    For safer and more convenient maintenance, the flail inspection door allows easy access to the flails. This makes flail changing and routine inspections quicker and safer, ensuring the machine is always operating at its best.
  • High-Quality Cut with Fine Finish Paddle Flails and Scarifying Option
    Equipped with fine finish paddle flails, the mower provides a high-quality cut suitable for a variety of grass types. Additionally, there is an option to add scarifying blades, enhancing its versatility for different turf maintenance needs.
  • Height Adjustable Full Width Rear Roller
    The full-width rear roller is height adjustable, allowing for precise cutting height control and creating a professional striped finish on the grass.
  • Height Adjustable Front Castor Wheels
    The front castor wheels are also height adjustable and feature solid tyres, ensuring puncture-free operation.
  • Robust and Lightweight Steel-Framed Fibreglass Hopper
    The hopper is constructed from a robust yet lightweight steel-framed fibreglass, providing durability without adding unnecessary weight. This makes the mower easier to handle and reduces the risk of surface damage.
  • Remote Greaser for Simpler Maintenance
    Maintenance is simplified with the inclusion of a remote greaser, which allows for easier and more efficient lubrication of critical components, ensuring smooth operation and prolonging the life of the machine.
  • Simple and Adjustable Category 1 Three Point Linkage
    The adjustable Category 1 three-point linkage system makes it easy to couple the mower to most compact tractors. This feature ensures compatibility and ease of use, allowing for quick and secure attachment and detachment.


Options:


  • Front Roller Kit:
    Enables precise ground contour following with fine adjustments, making it ideal for precision scarifying and maintaining fine turf
  • Heavy-Duty Delta Flails:
    Upgrade to Delta paddle flails for more robust cutting capabilities.
  • Scarifying Blades:
    Scarifying blades can be fitted to help thatch removal, aeration and encourage new growth.


Applications:


  • Annual cutting and collection of small wildflower and conservation areas.

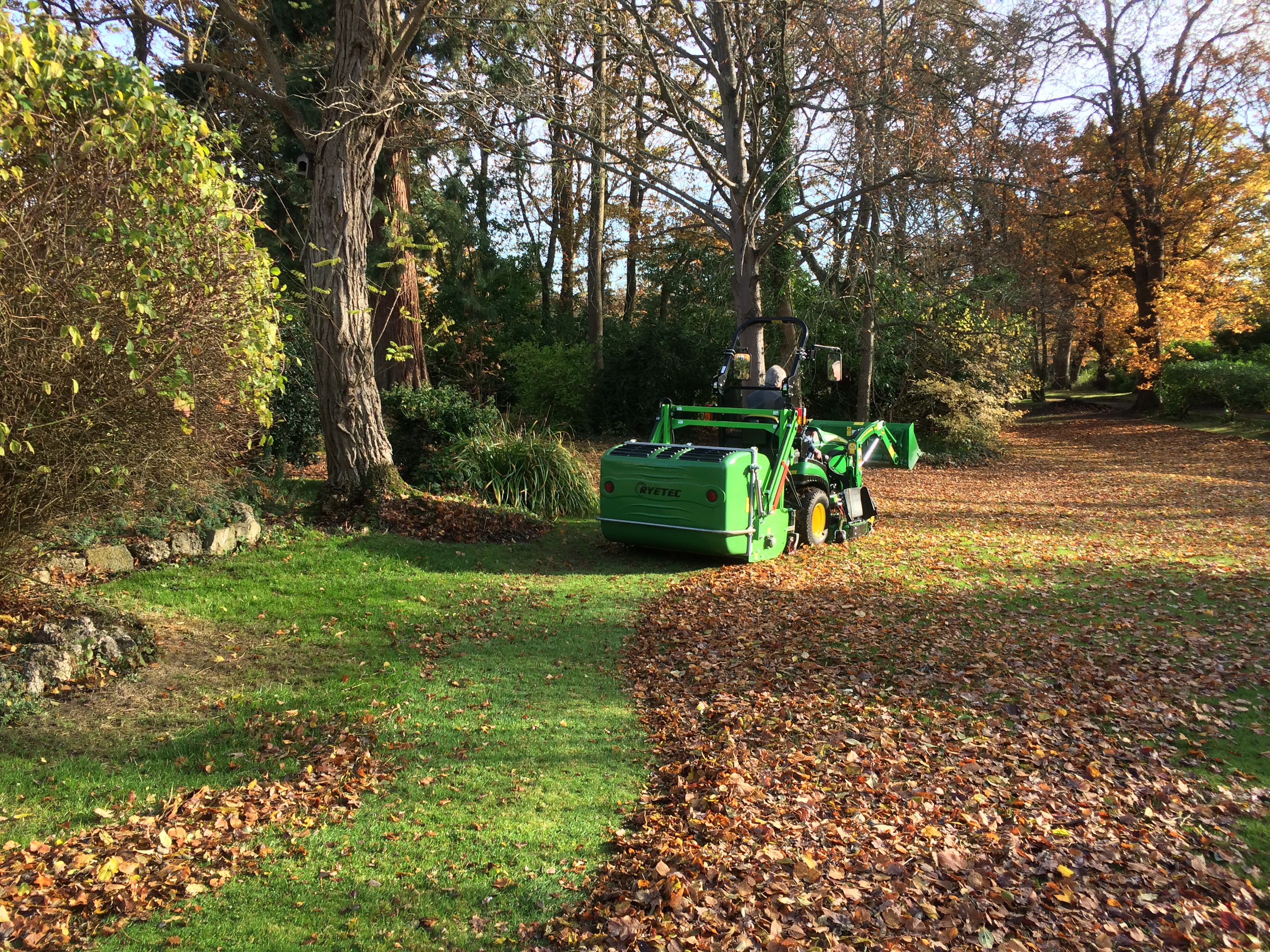

  • Autumn clear ups – collecting leaves and debris.
  • Large gardens, paddocks and orchards.
  • Golf courses and sports fields.

Product Specification

Model Width of cut
mm
Weight
kg
Capacity
No.
of
flails
Min.
tractor
hp
Tipping
action
Ground
tip
High
tip
Front roller
kit
M1000CE 1000 210 0.6 32 15 Manual T X Optional
M1000C 1000 210 0.6 32 15 Hydraulic T X Optional
M1200CE 1200 250 0.7 40 18 Manual T X Optional
M1200C 1200 250 0.7 40 18 Hydraulic T X Optional
M1600CE 1600 310 0.9 50 22 Manual T X Optional
M1600C 1600 310 0.9 50 22 Hydraulic T X Optional
M1200CH 1200 330 0.7 40 18 Hydraulic X T Optional
M1600CH 1600 390 0.9 50 22 Hydraulic X T Optional

Product Videos

Customer Spotlight

  • I’m very happy with the product thank you, it works/collectors much better than our previous one and other machines we tried! Thank you, George, for your excellent service and support!

    Paul Grace
  • Hi George,
    Thought you might like an update.
    We are really pleased with the mini collector, the conversation I had with you helped me make a good choice.
    I really liked the fact you didn't attempt to discredit the competition.[...]

    Hi George,
    Thought you might like an update.
    We are really pleased with the mini collector, the conversation I had with you helped me make a good choice.
    I really liked the fact you didn't attempt to discredit the competition. You just gave me the facts about why yours would work better.
    Chris (top bloke)who delivered it was really helpful and knowledgeable about the product, and gave us an accurate delivery time.
    It has been a pleasure doing business with you.
    Thanks again, Braden.

    Braden Hockley

Mini Flail Mower Collector Video
