The Rabaud Xylog 600 is a high-capacity firewood processor designed for large-scale contractors and firewood producers. This robust machine is tailored to meet individual customer needs, with versatile configurations available for both static and mobile operations.
Overview:
Cutting Capacity: 600mm cutting capacity using an Oregon harvester-spec chainsaw for efficient and precise cutting.
High-Speed Production: Capable of processing 10-15m³ of timber per hour, optimized for high output with large-diameter logs.
Efficient Timber Handling: Twin belt intakes handle raw timber up to 5 meters in length, with a "V" arrangement for smooth propulsion into the cutting mechanism.
Powerful Splitting System: 35-ton splitting ram with a hydraulically controlled splitting axe cassette, offering options for 2/4/8 & 16-way splitting.
Flexibility: Customizable with electric, engine, or tractor PTO drive options; available in stationary or mobile configurations.
Bypass System: Features a splitter bypass system for streamlined operations with small-diameter logs.
Cutting Capacity The Xylog 600 boasts a 600mm cutting capacity, utilizing an Oregon harvester-spec chainsaw for efficient and precise cutting.
High-Speed Production This firewood processor is capable of processing 10-15m³ of timber per hour, making it ideal for high-output operations, even when dealing with large-diameter logs.

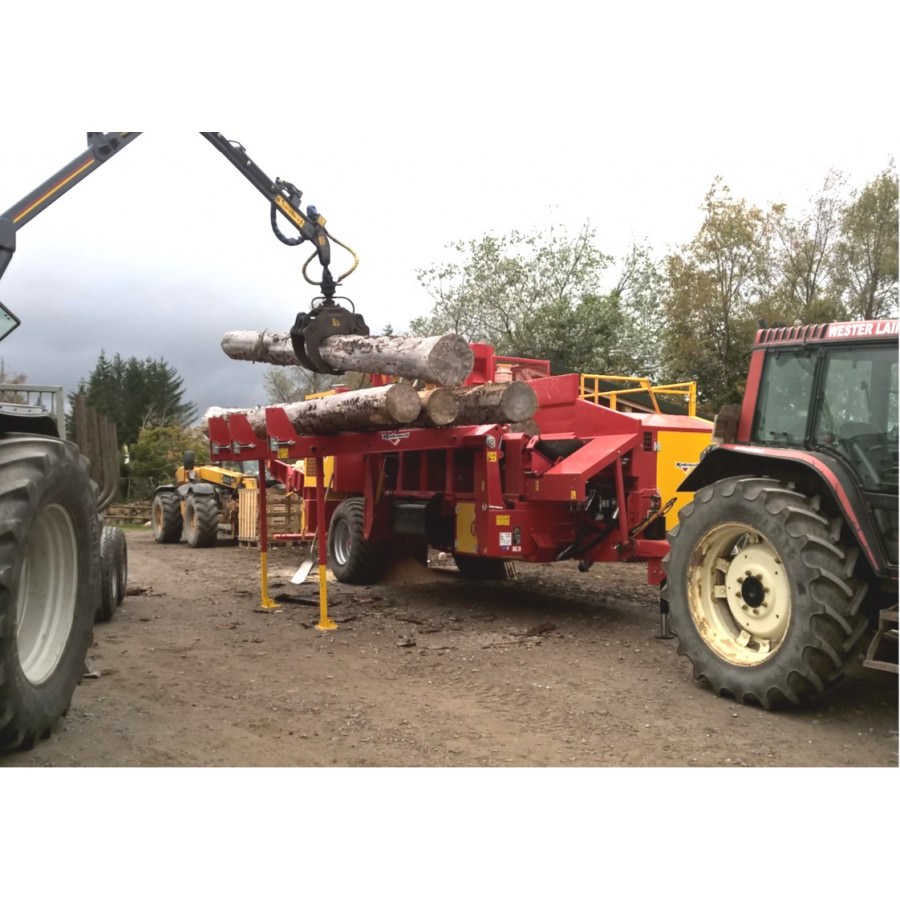

Efficient Timber Handling Equipped with twin belt intakes, the Xylog 600 can handle raw timber up to 5 meters in length. The "V" arrangement of the belts ensures that the timber is centered and smoothly propelled into the cutting mechanism.

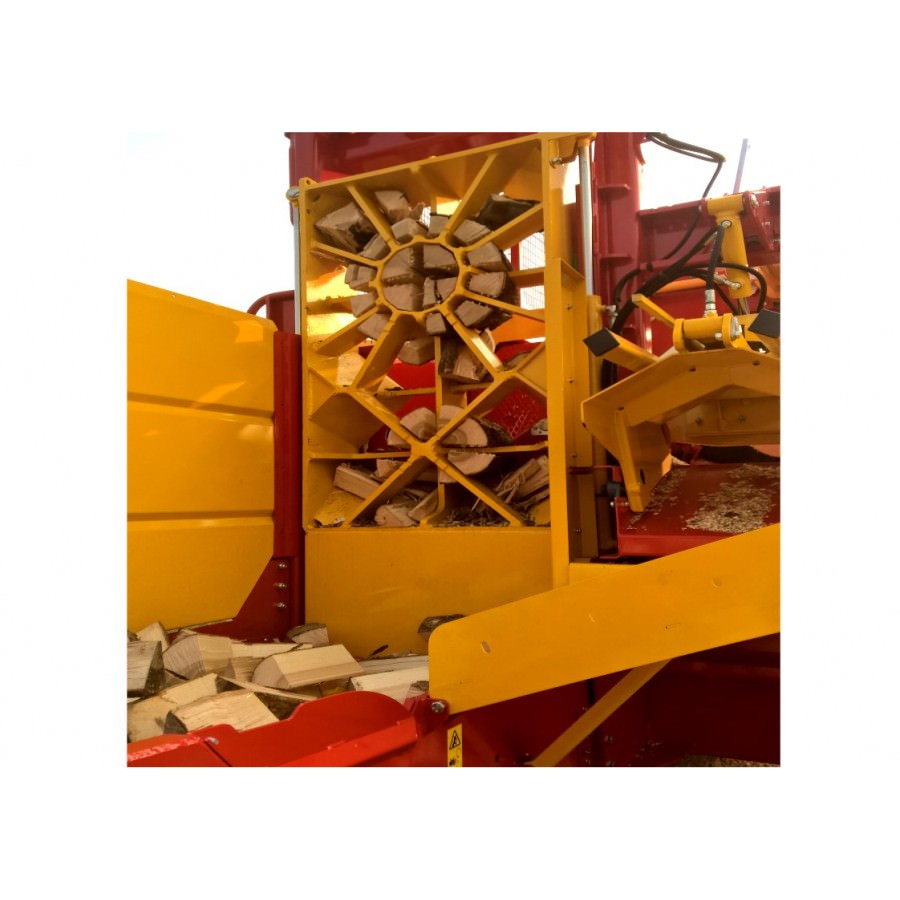

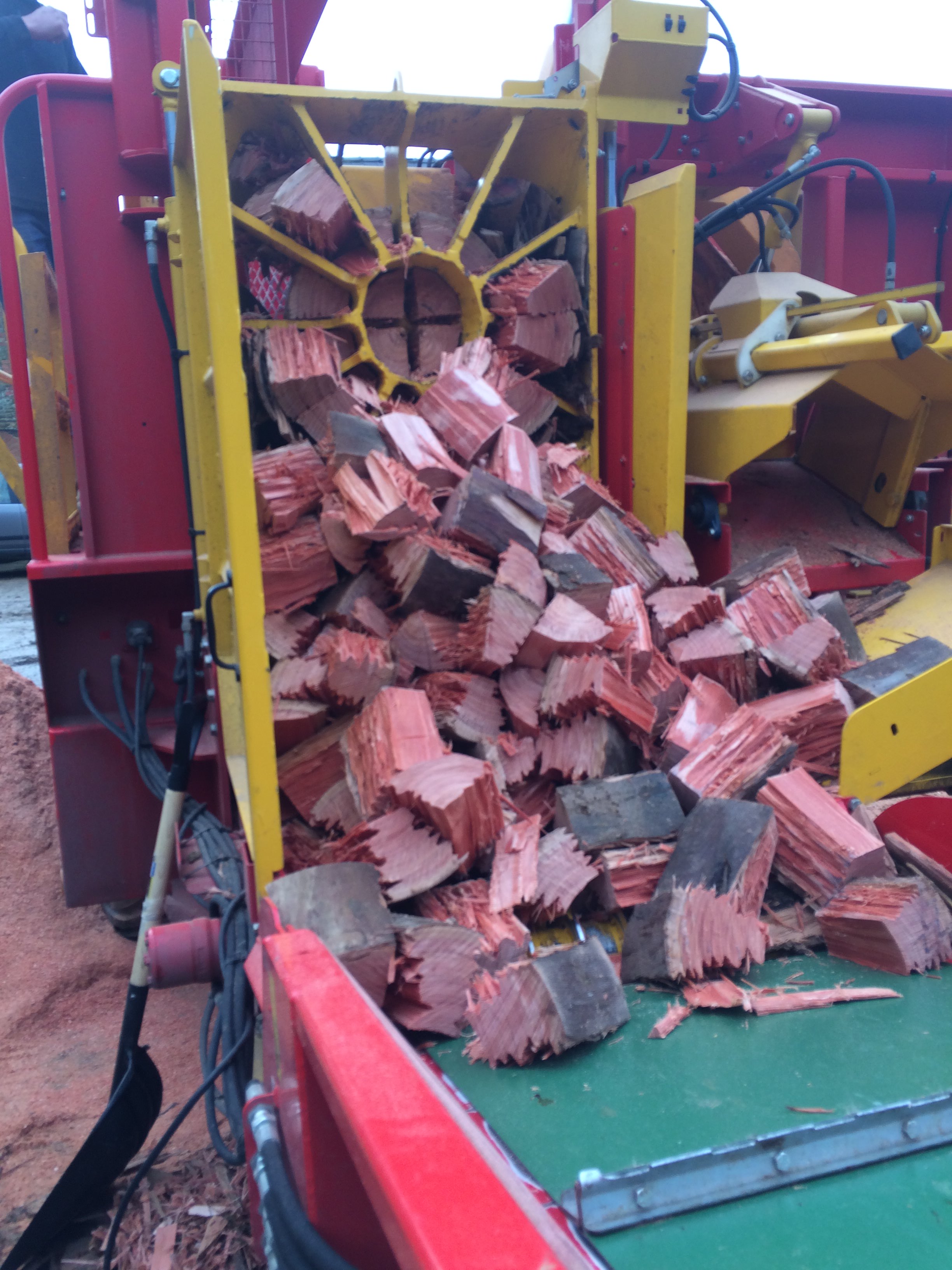

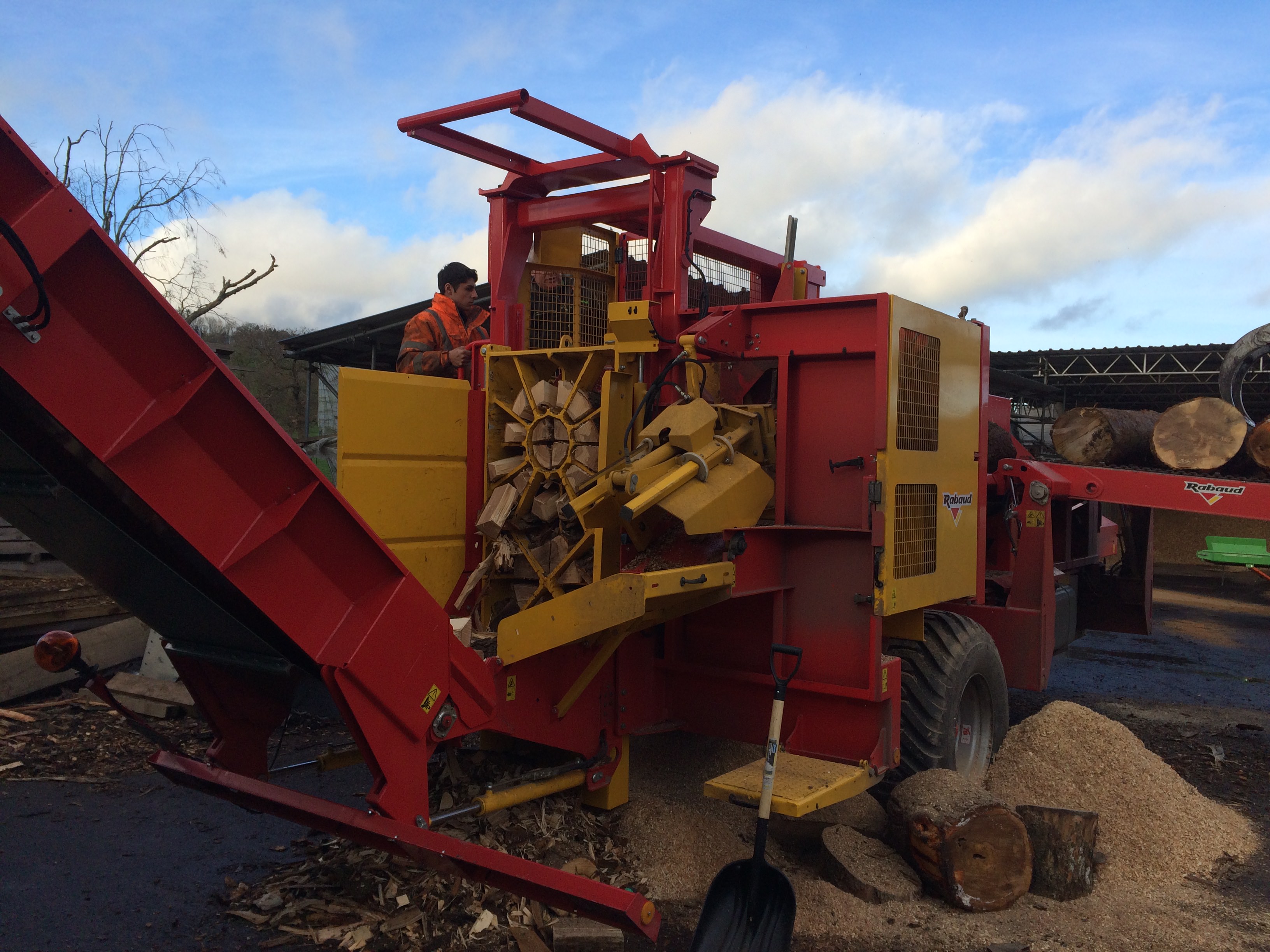

Powerful Splitting System The machine includes a 35-ton splitting ram and a hydraulically controlled splitting axe cassette, with options for 2/4/8 & 16-way splitting. Self-centering axes enhance the efficiency and precision of the splitting process.
Flexibility The Xylog 600 can be customized with various drive options, including electric, engine, or tractor PTO drive. It is available as a stationary plant or a mobile unit, which can be set up or packed away in under 10 minutes.
Bypass System For processing small-diameter logs, the Xylog 600 features a splitter bypass system that streamlines the operation, allowing for continuous and efficient production.
Options:

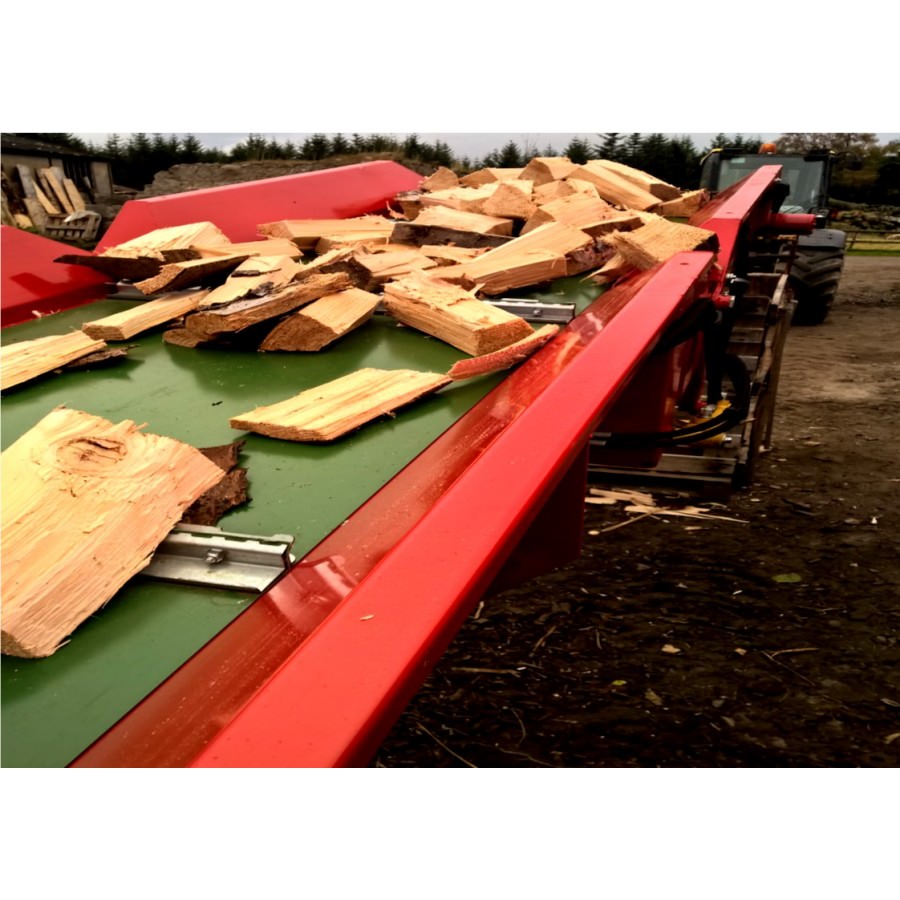

Log Tables and Elevators: Facilitate easier handling and processing of logs.
Log Cleaner: Ensures processed firewood is free from debris.
XYLOmetre Computer: Offers production and volume control along with automatic axe control for optimized operations.
Sawdust Control: Helps maintain a cleaner working environment.

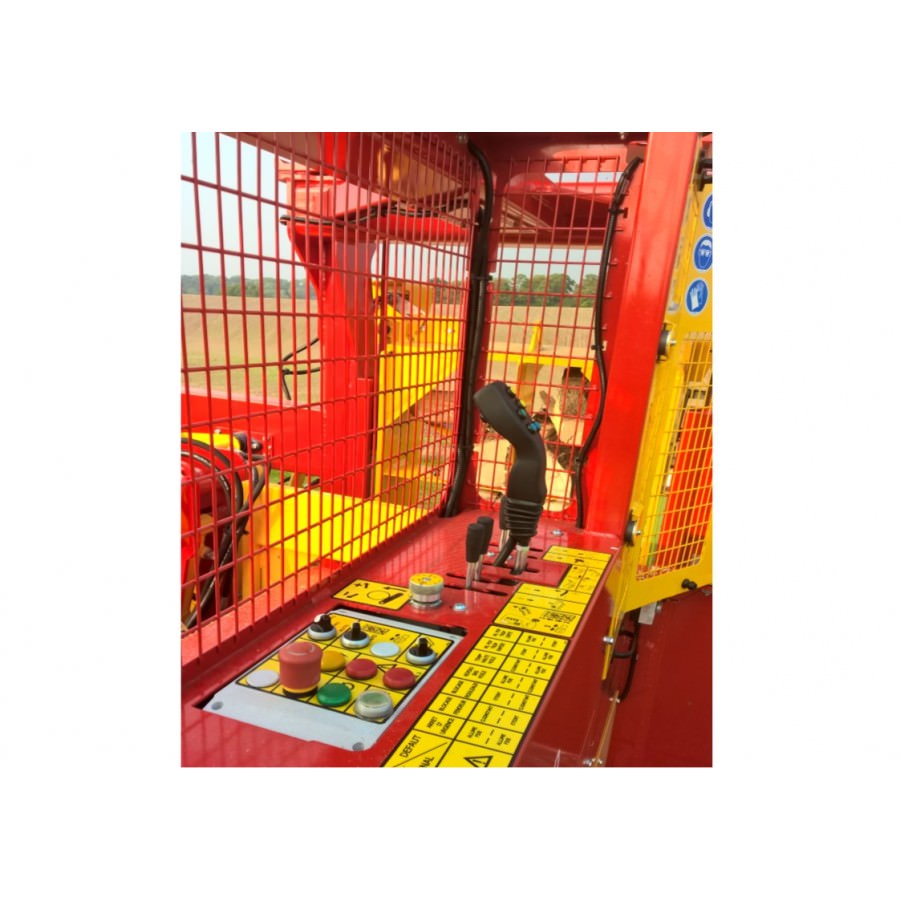

Operator Cover: Provides protection for the operator in various weather conditions.
Applications:
Large-Scale Firewood Production: The Xylog 600 is ideal for contractors needing to process significant volumes of timber quickly and efficiently.
Versatile Operation: Suitable for use in both static installations and as a mobile unit, delivering reliable performance even with large or awkward pieces of timber.
Rabaud Xylog 600 High Capacity Log Firewood Processor Video
Frequently Asked Questions
The tractor-driven Rabaud Xylog 600 runs from a 540 rpm PTO and needs 90 hp at the PTO, around 110 to 120 hp at the tractor. It is also available with a 55 kW (75 hp) three-phase electric motor or a 75 hp Deutz Stage 5 diesel engine for self-powered work.
The Rabaud Xylog 600 is a high-capacity firewood processor for large-scale contractors and firewood producers. It cuts timber up to 600 mm in diameter with an Oregon harvester-spec chainsaw and can process 10 to 15 m3 of timber per hour, set up either as a stationary plant or as a mobile unit.
For entry-level and small-farm work, the Contractor Combi pairs a 700 or 800 mm saw bench with a 12 or 14 ton splitter. The CP1000ECO cuts and splits logs up to 41 cm on around 35 hp at the PTO. For contractor volumes, the Rabaud Xylog 600 handles logs up to 600 mm and 10–15 m³ of timber per hour.
A log deck holds a batch of timber and chain-feeds it onto the processor's infeed, so the operator loads several logs at once instead of one at a time. This increases output and cuts handling. Ryetec log decks come in Economy and Professional versions and can be loaded straight from a KTS timber trailer, telehandler or forklift.
