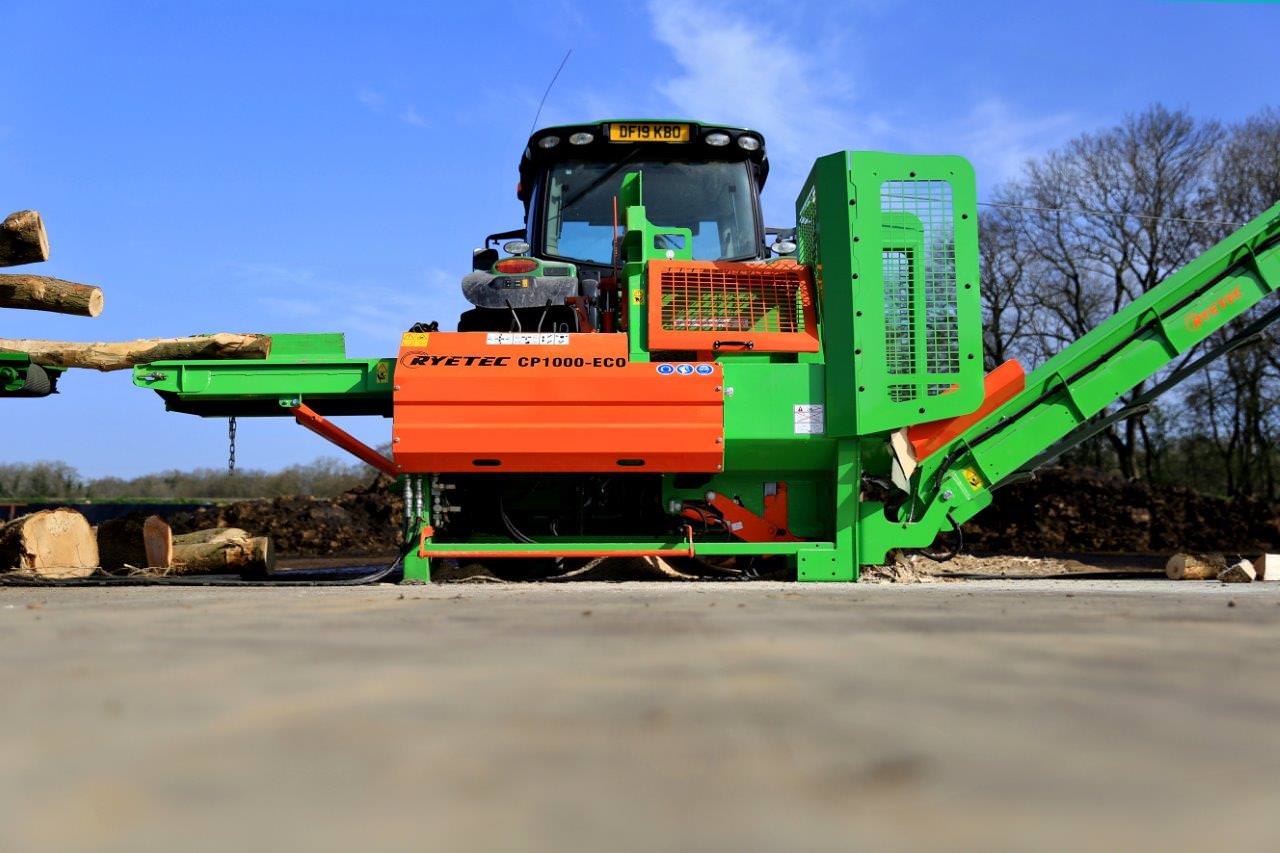

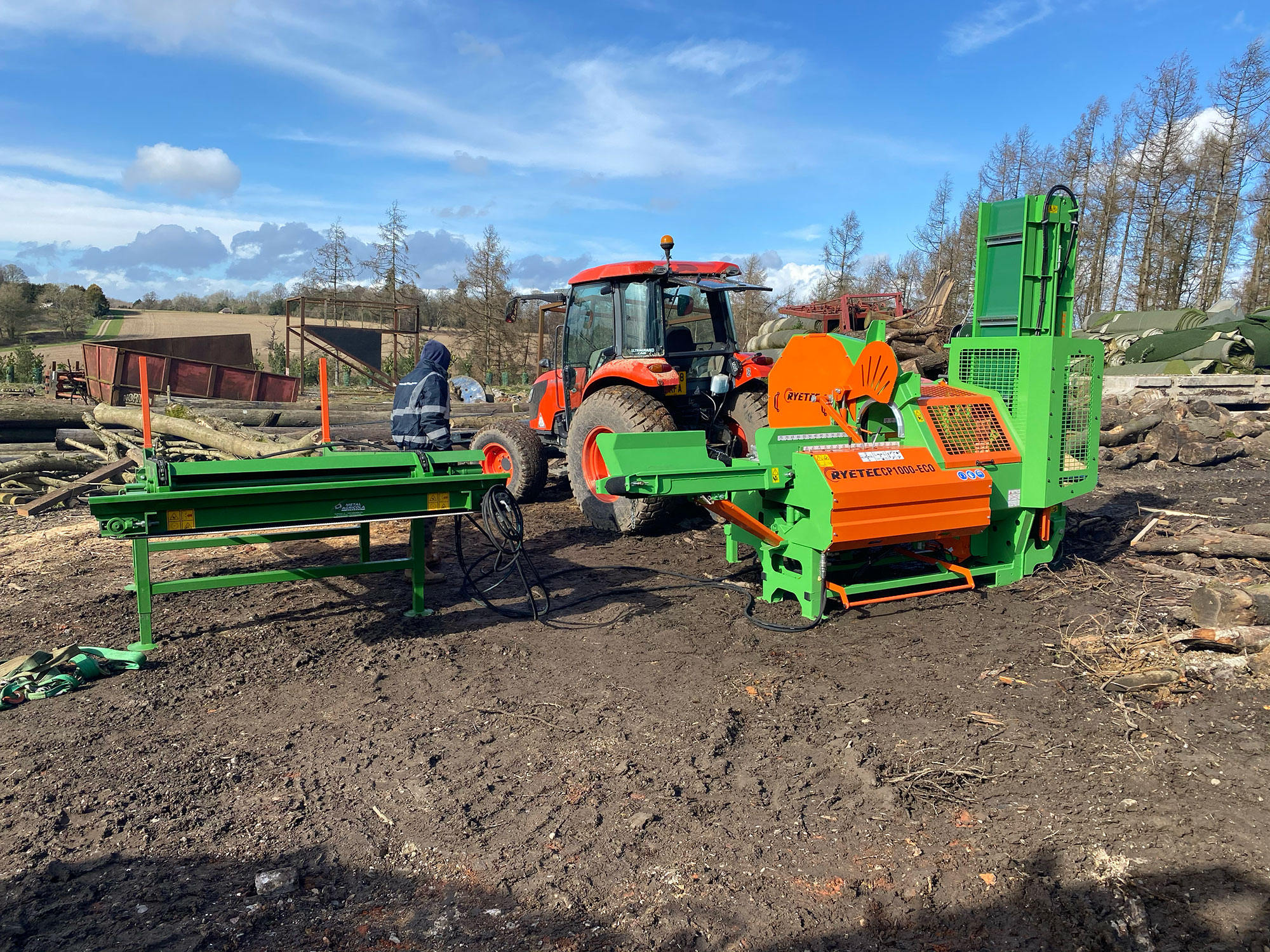

The Contractor ECO series boasts a straightforward, mechanical operation with no electronic systems, ensuring consistent performance with low maintenance requirements.
The processor features a belt-driven circular saw blade made from tungsten, measuring 1000mm in diameter. This design allows for quick and efficient cutting with minimal waste, making it a top choice for operators looking to maximize output.
The ECO series includes a fully independent PTO-driven hydraulic system. This system powers all hydraulic functions, ensuring the processor operates smoothly without relying on the tractor's hydraulic system.

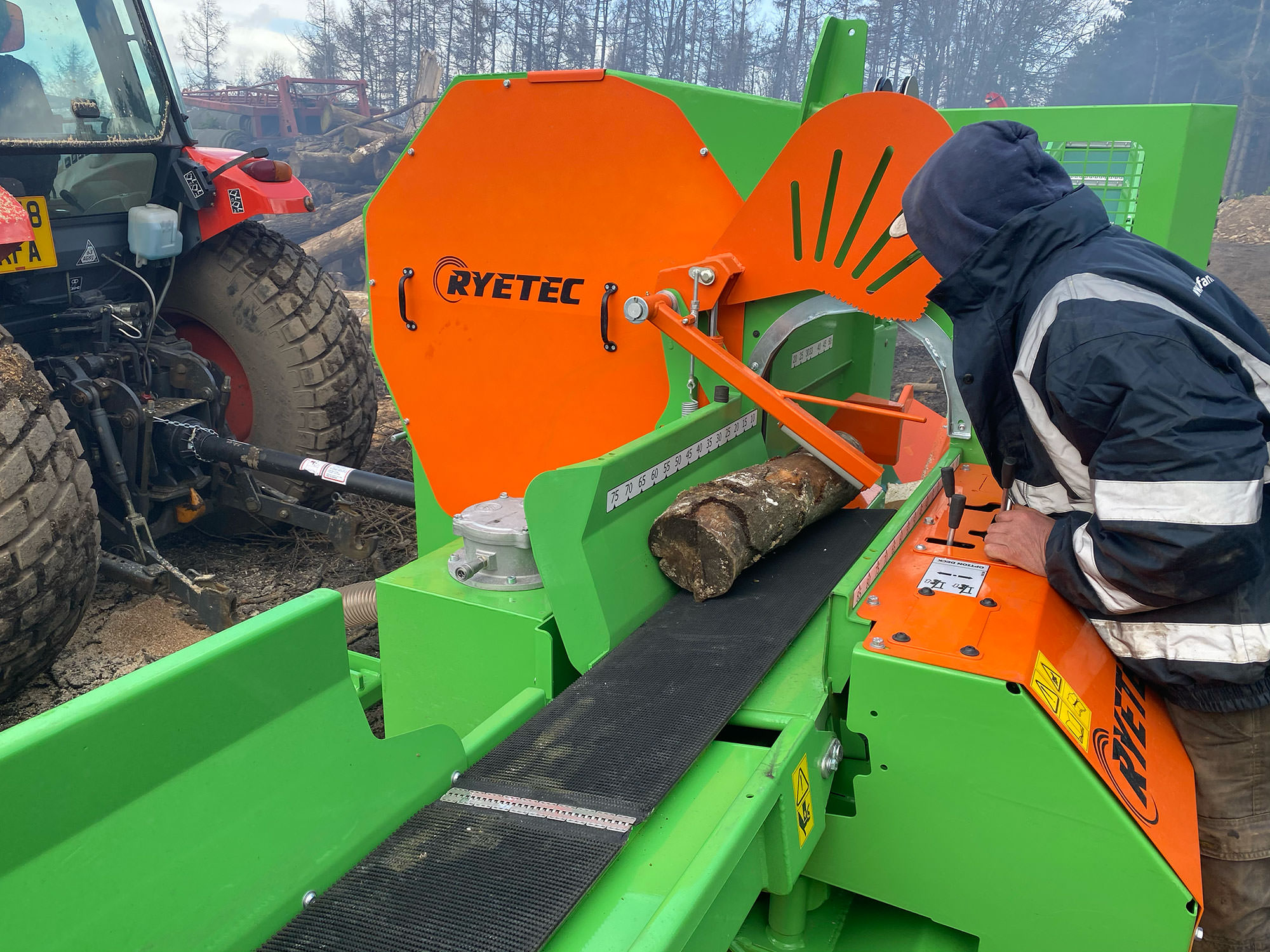

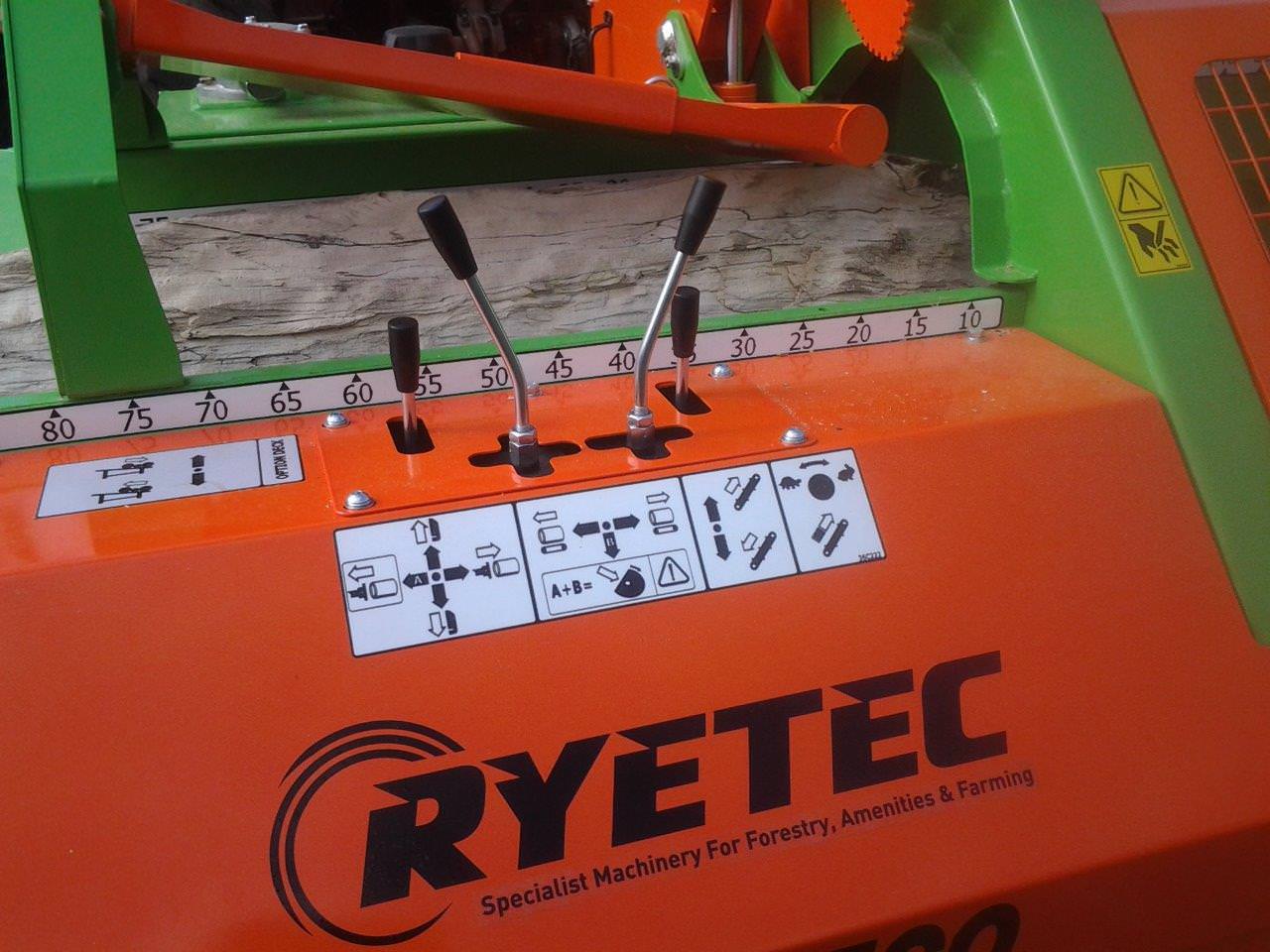

Central to the processor is an operator station equipped with twin joysticks for easy control. The joysticks manage the intake conveyor, log gripping, cutting, and splitting functions. For added safety, the saw blade requires a two-handed operation to move.
The machine features an adjustable steel plate that controls log lengths between 200 to 500mm (8 to 24 inches). After cutting, a hydraulically adjustable splitting wedge can divide logs into 2, 4, 6, or 8 pieces, ensuring flexibility for various firewood sizes.

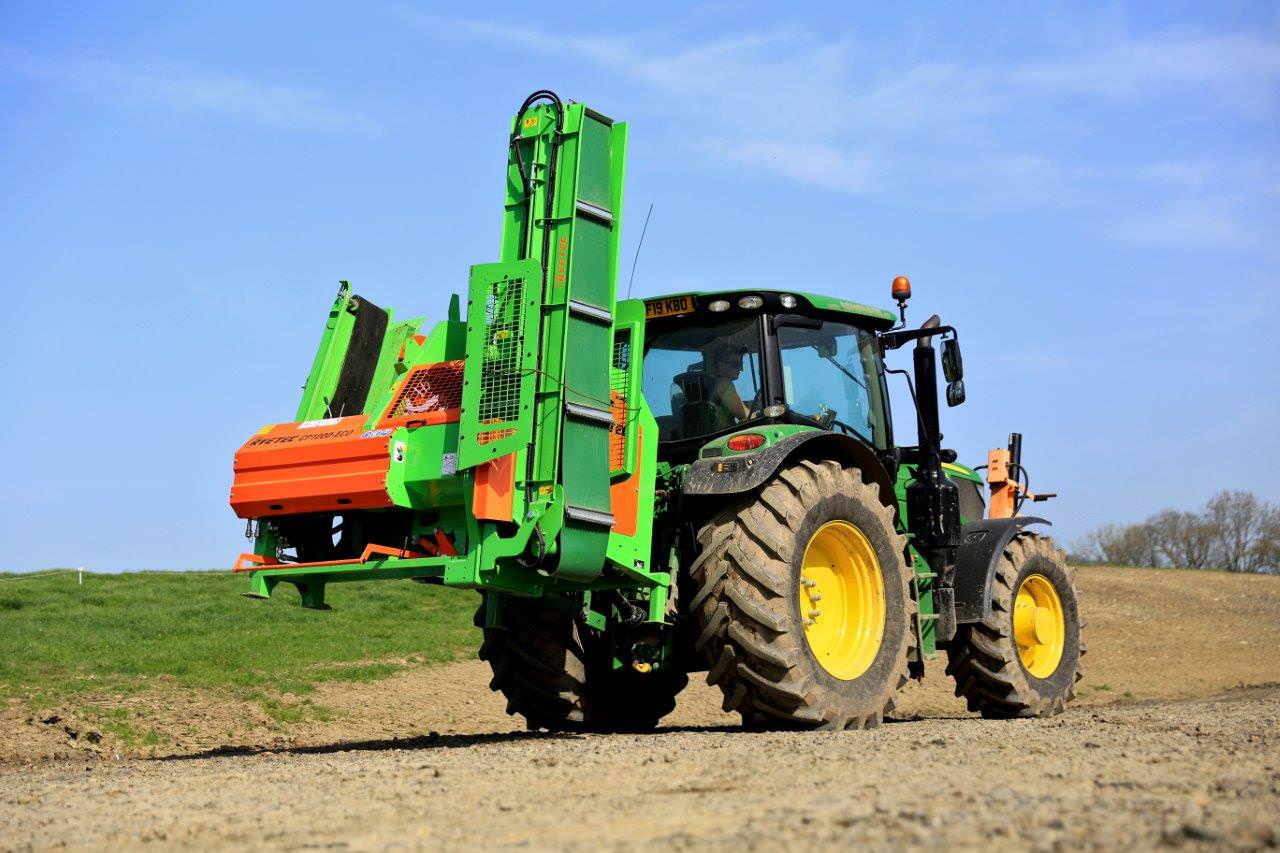

A robust 4-meter long conveyor efficiently transports cut logs, which folds for convenient transport and storage. Optional upgrades include a folding and slewing hydraulic conveyor for enhanced versatility.
Constructed with a heavy-duty chassis, the Contractor ECO series is designed to withstand the rigors of continuous use, making it a reliable choice for professional operators.
With a power requirement of just 35hp PTO, the ECO series can be easily run by most tractors, offering an economical and efficient solution for firewood processing.
Optional Features:

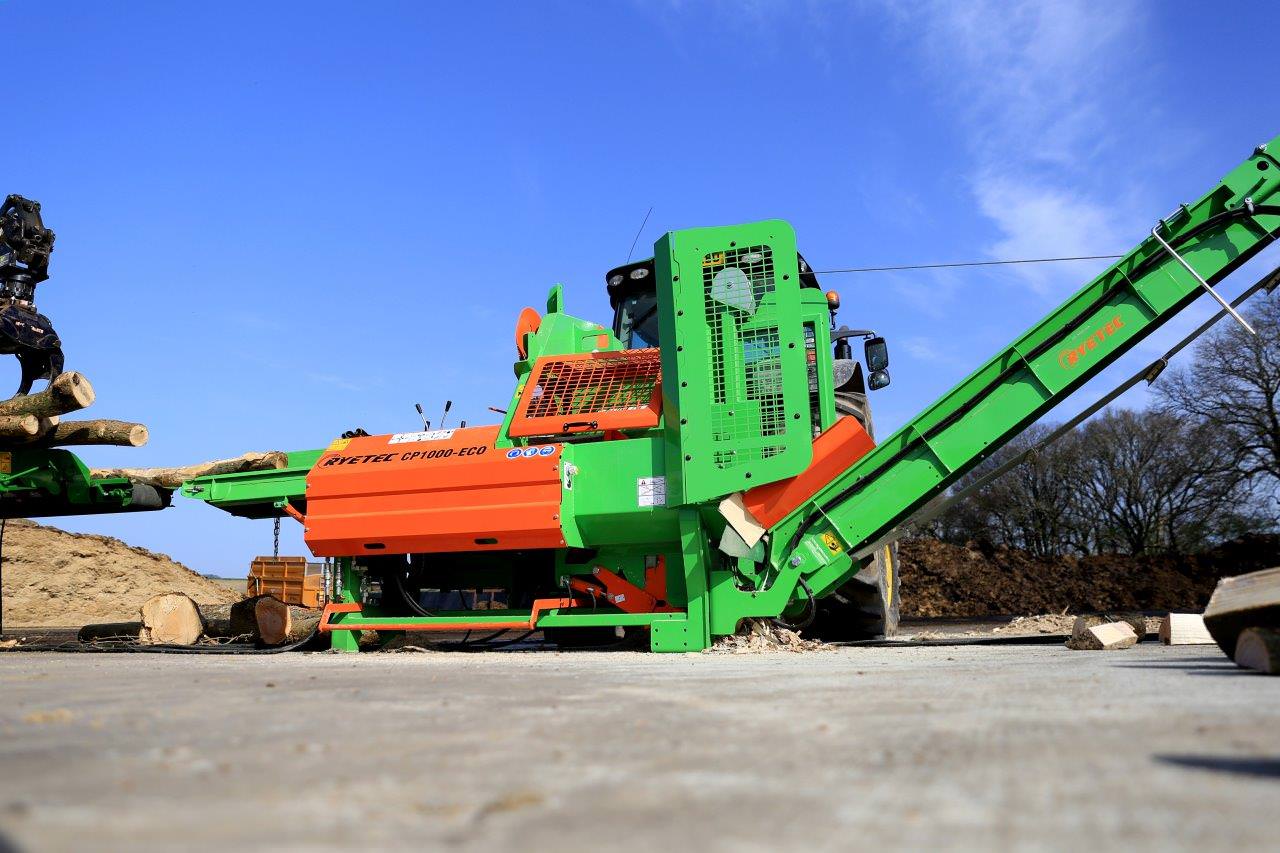

The CP1000ECO is the perfect blend of simplicity, durability, and efficiency. With a focus on mechanical reliability and high output, these machines are ideal for operators who demand the best from their firewood processing equipment. Whether you're a seasoned professional or just getting started, it offers everything you need to get the job done with minimal fuss and maximum reliability.
Model | CP1000 ECO |
---|---|
Max diameter of log cm (inch) | 41 (16.1) |
Power source | PTO or Optional electric |
Standard spliting force | 16 Tons |
Standard axe | 2/4 & 2/6 & 2/8 |
Circular saw blade diameter | 1000mm |
Weight | 1520 kg |
