Ryetec Restorer Track Eradicator
Ryetec Restorer Track Eradicator

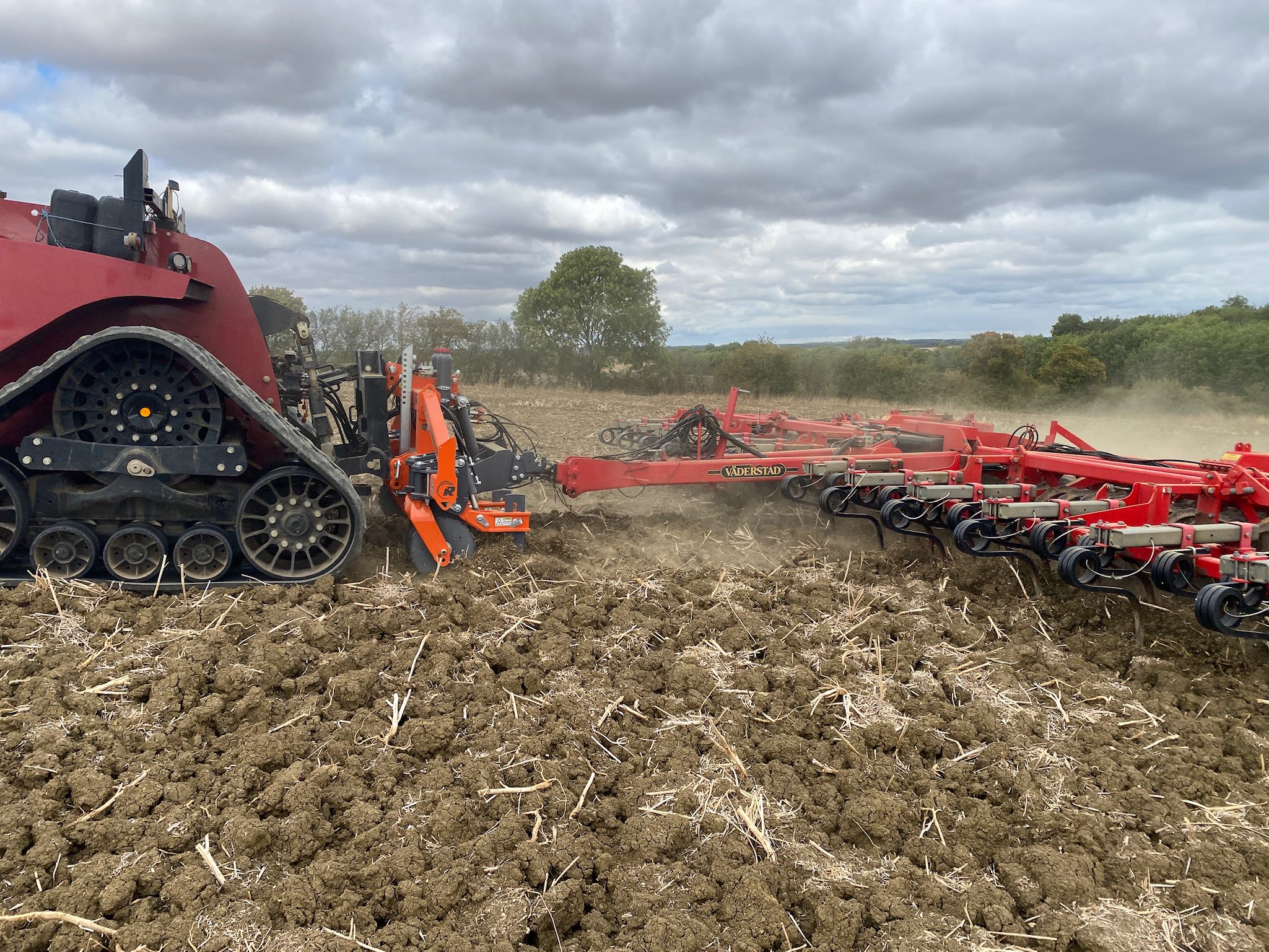

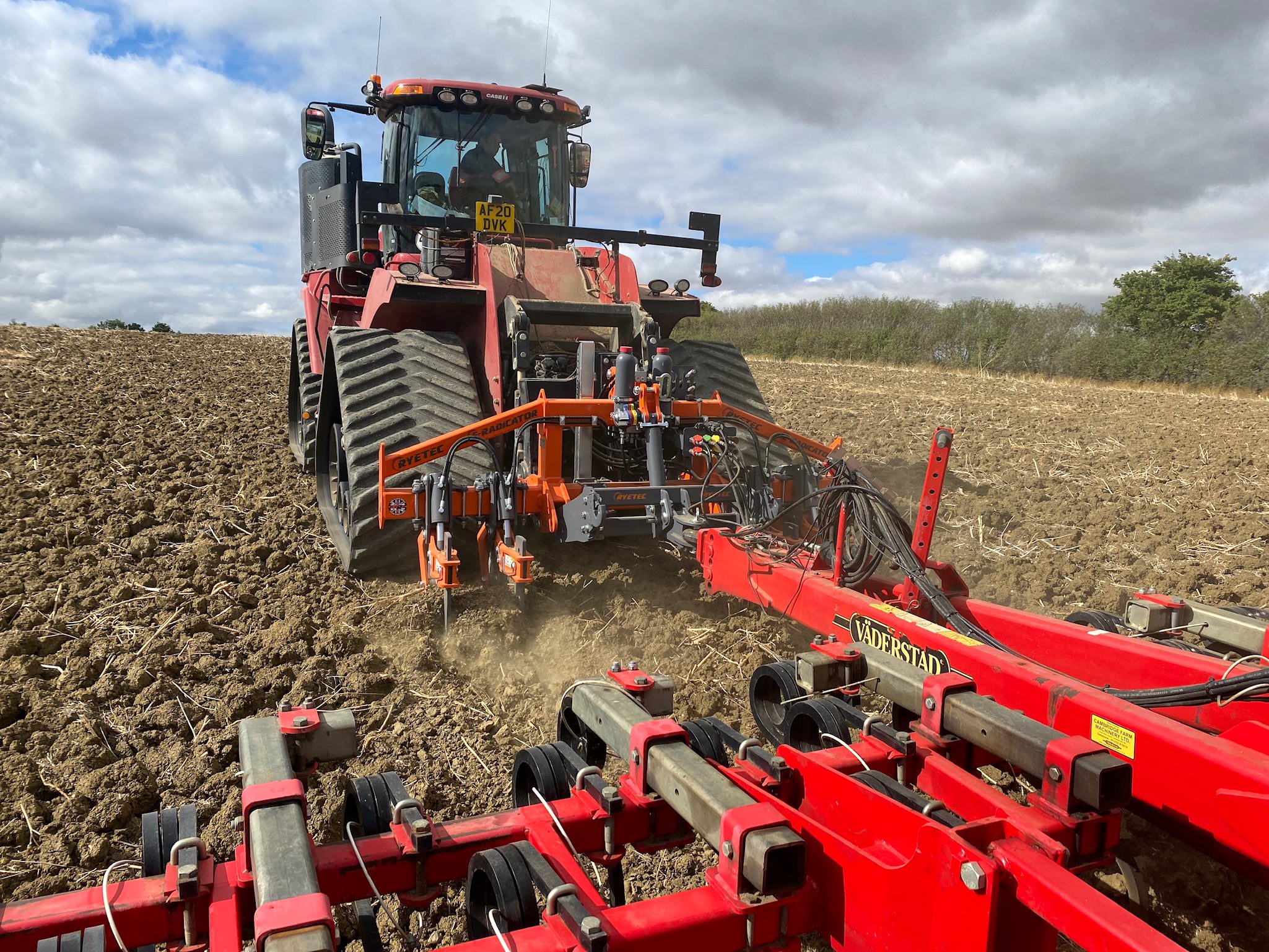

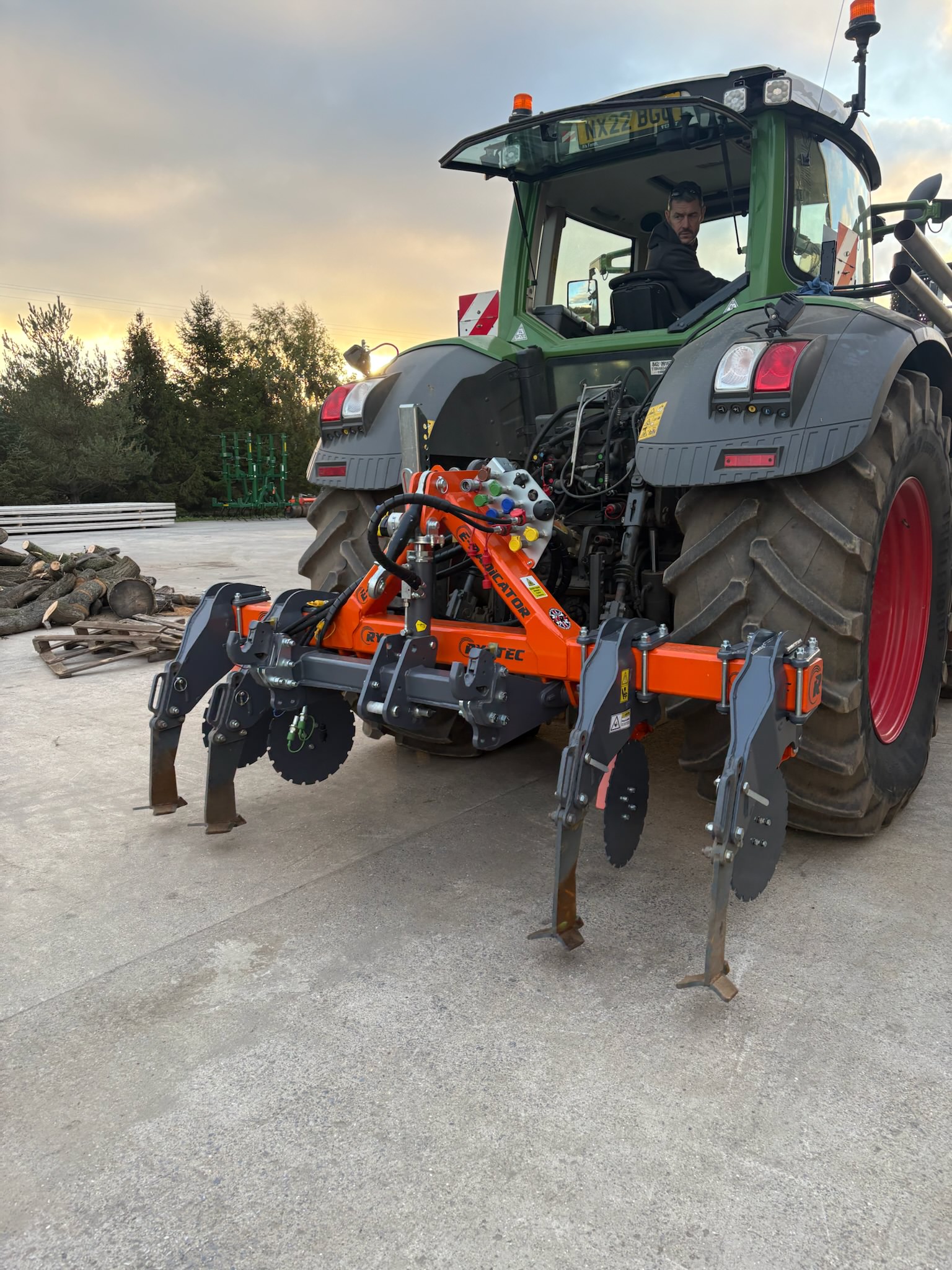

Causing minimal surface ground disturbance with a large 450mm cutting disc and low disturbance point on a steering arm. It is ideal when used on tracked tractors or when working headlands, relieving compaction and aiding drainage.
Available with either full Auto Reset or Shearbar system
Overview:
- 3m toolbar with 4 legs & points with tungsten tips - longer lasting points for reduced running costs & downtime.
- Adjustable leg positioning-legs feature frame clamping system to allow for exact positioning of legs relative to tractor wheel/track width and wheel centres.

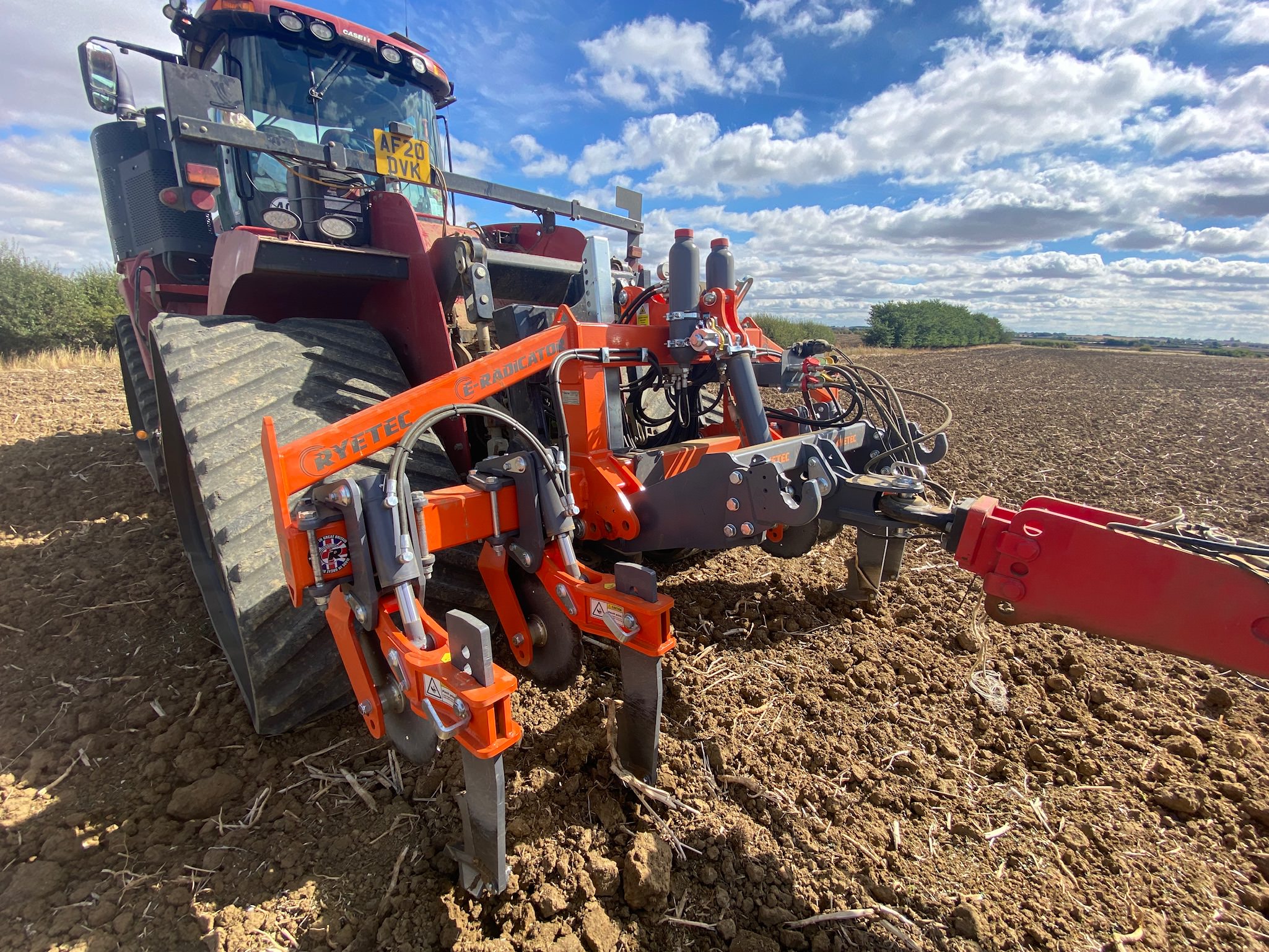

- 20mm Hardox legs that are depth adjustable to 400mm - for high resistance to damage and wear with accurate and easy no tool depth adjustment.
- Shearbar protection for legs - where conditions are unlikely to cause repeated obstruction of the legs (Auto reset option available).
- Heavy duty pivoting discs & legs - allow for ease of maneuvrability around obstacles, headland following and steering pressure from tracked or pivot steer tractors.

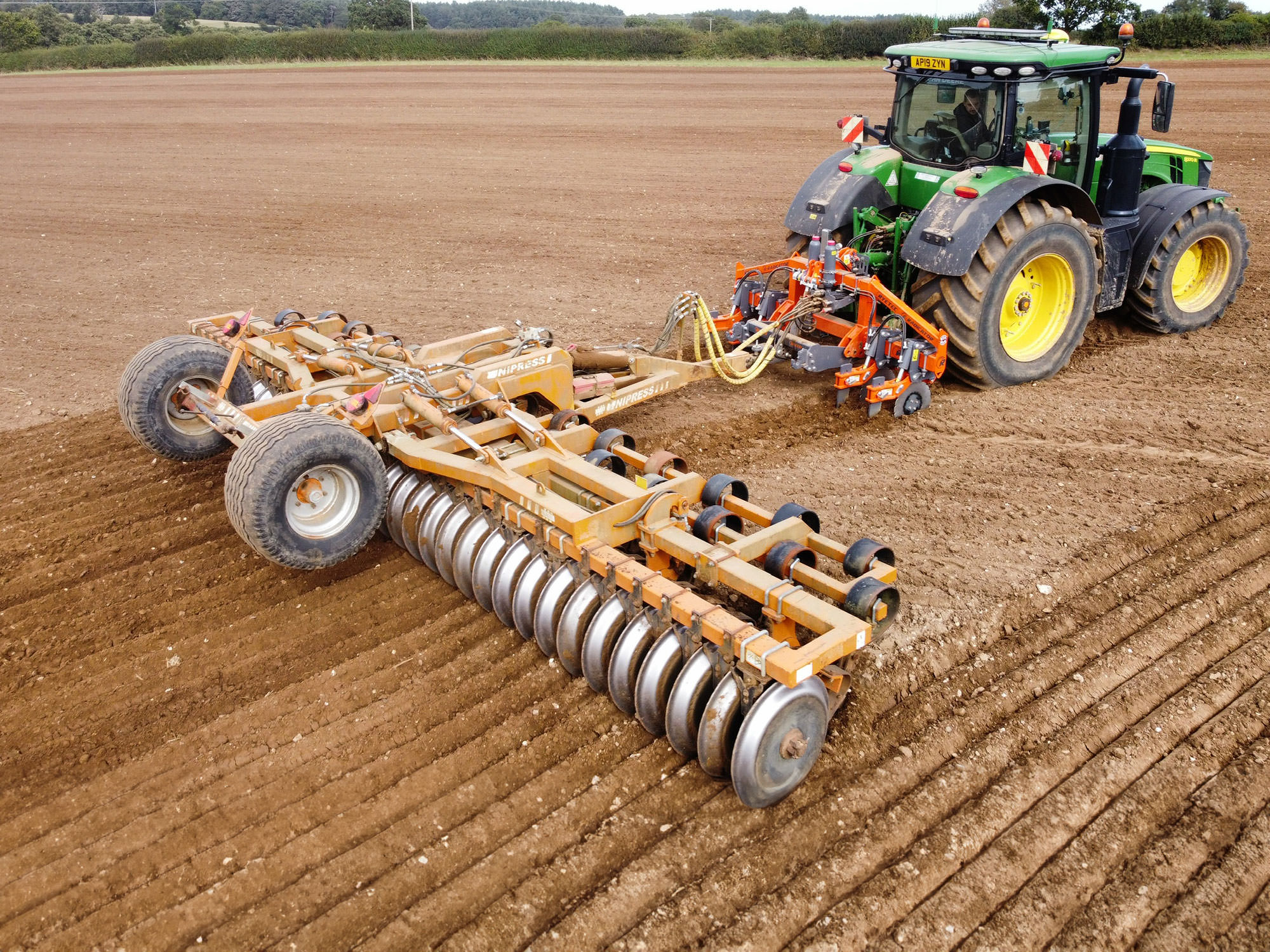

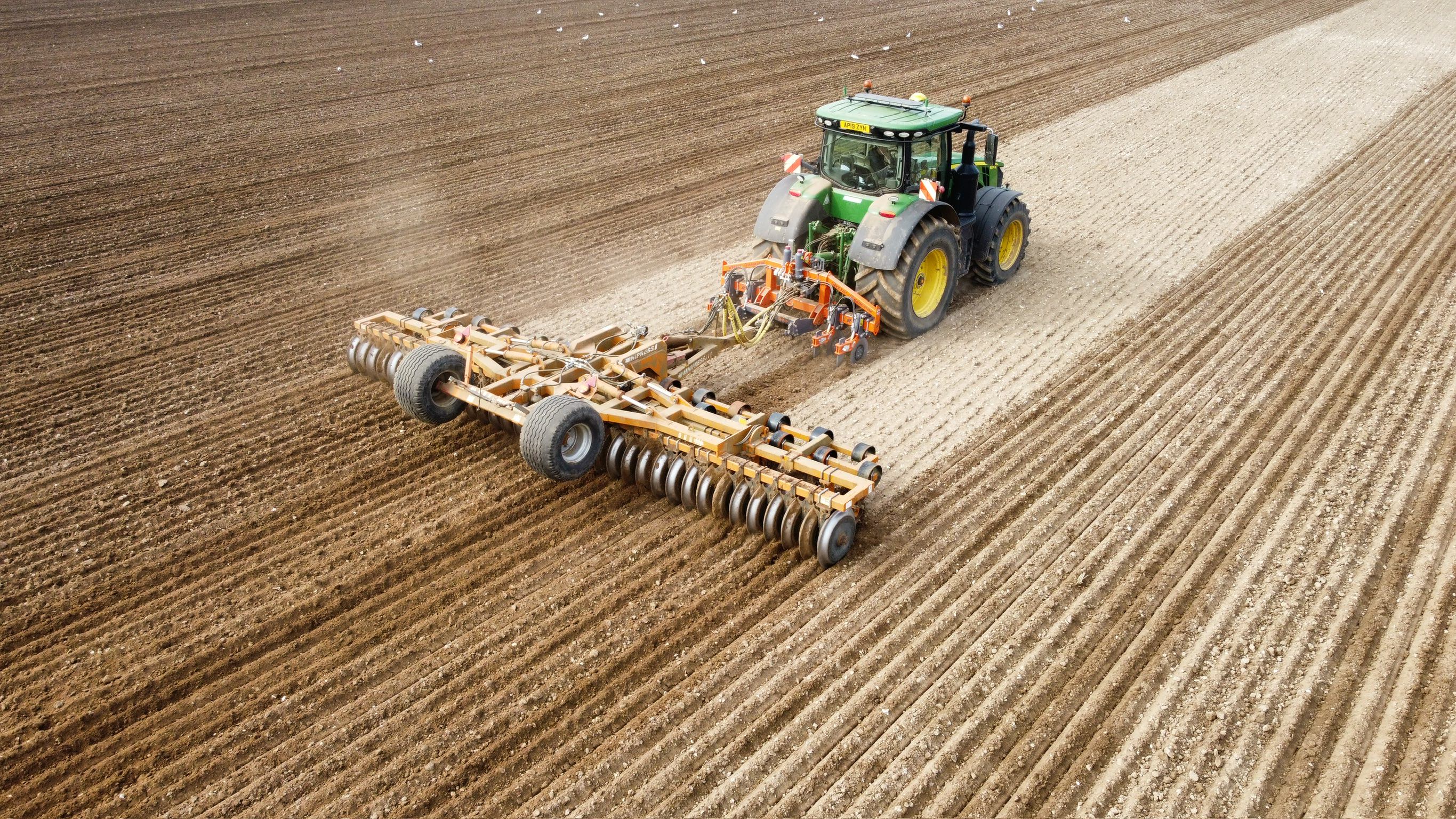

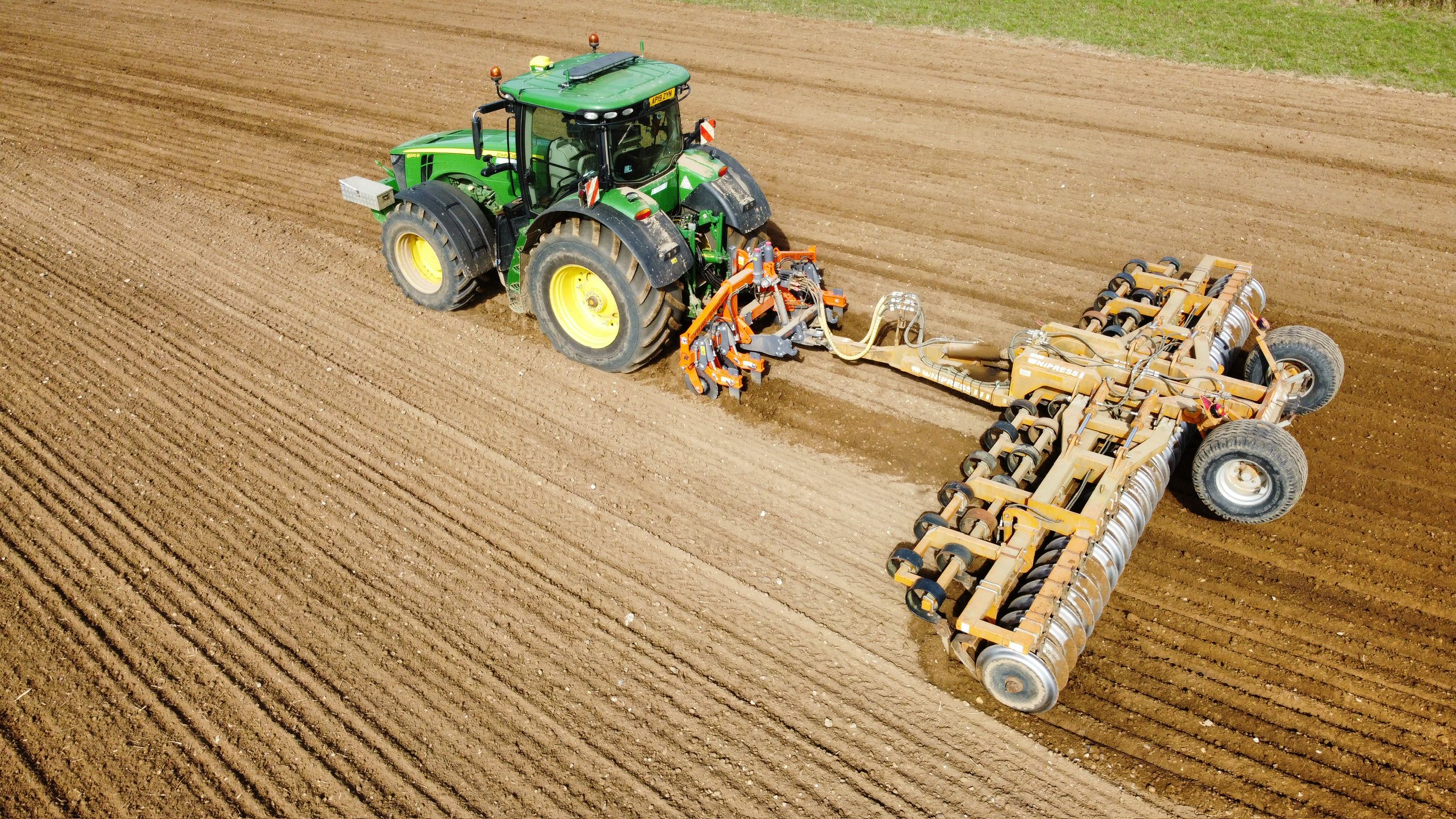

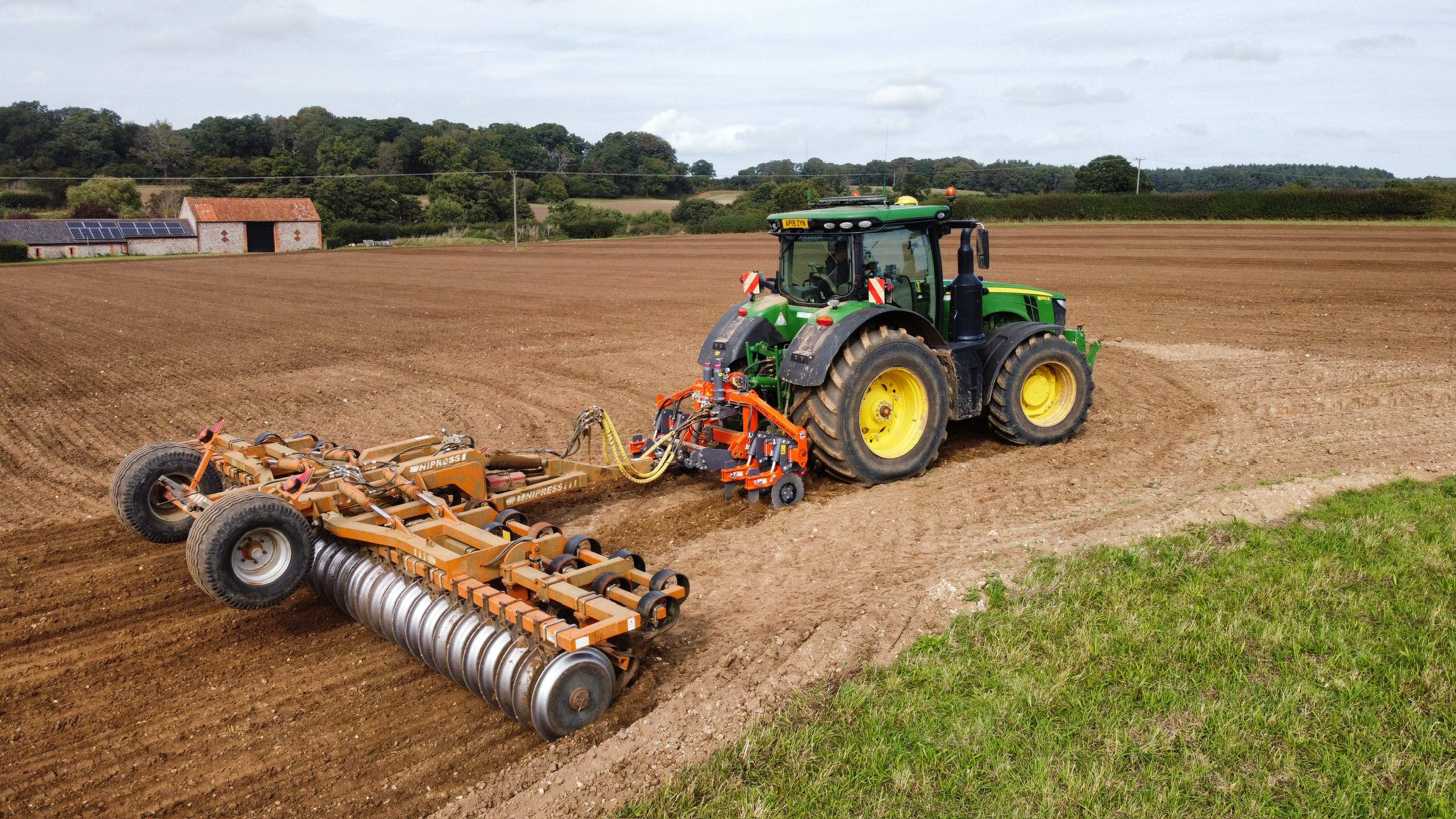

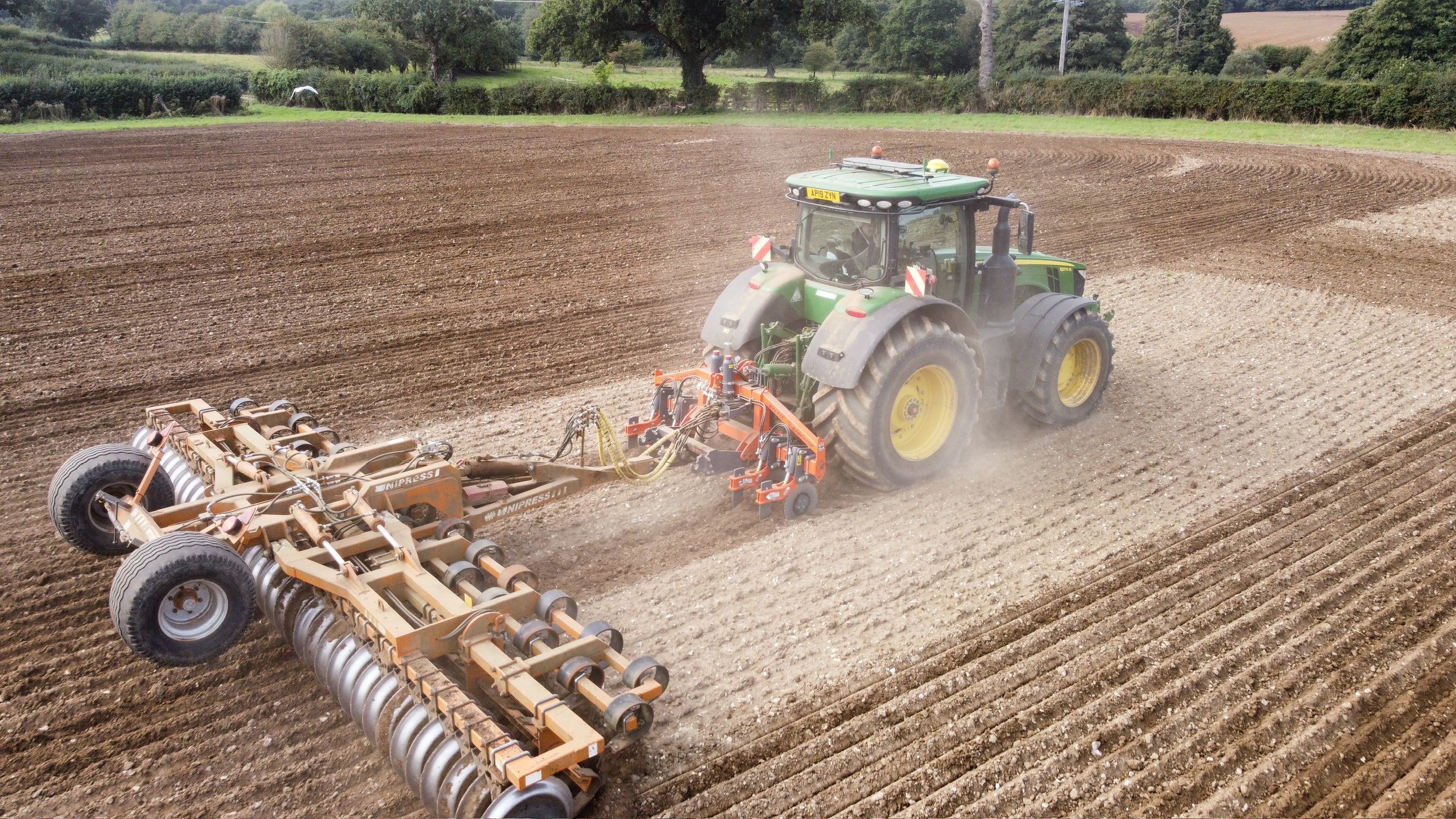

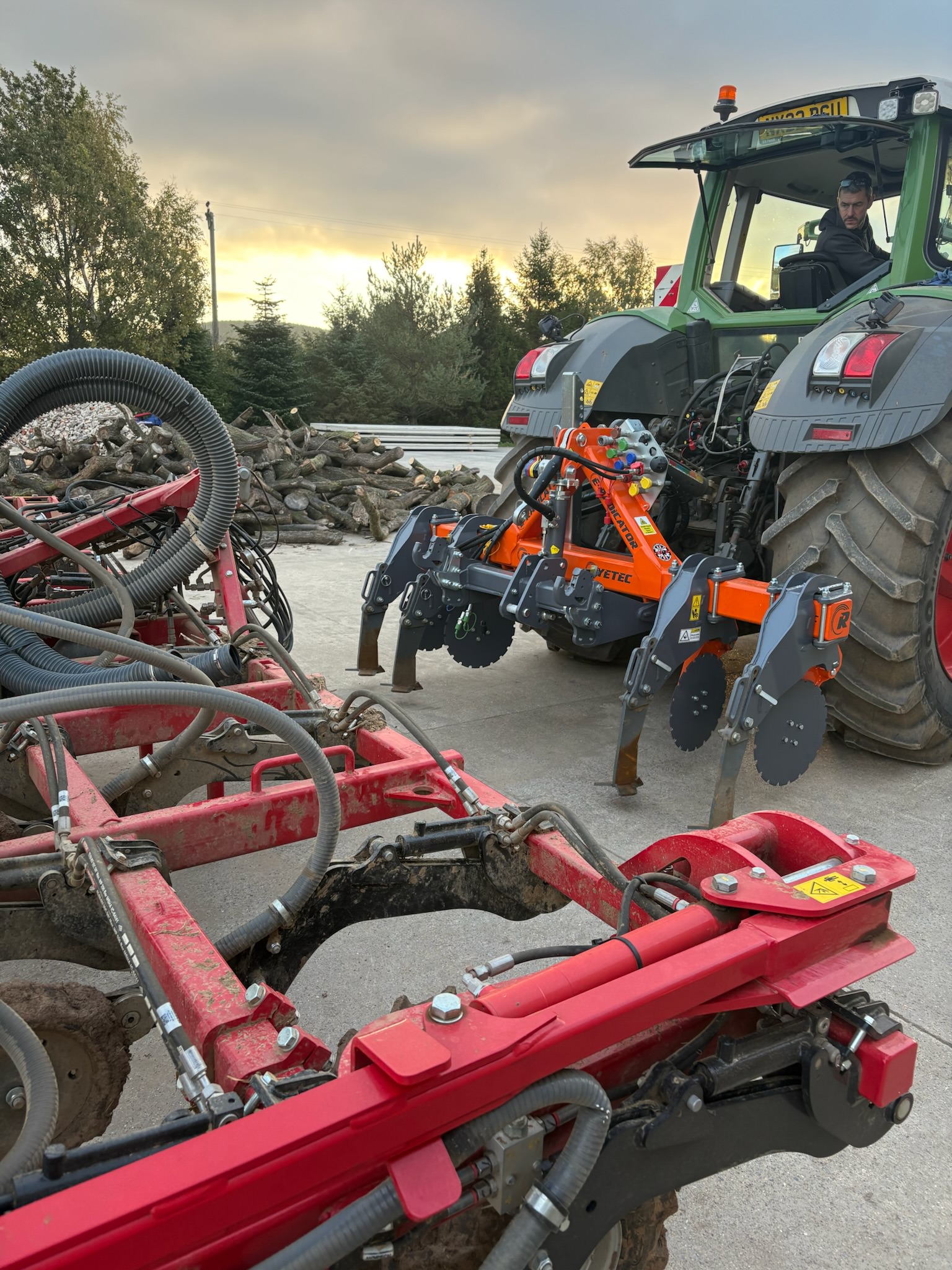

- Rear linkage & drawbar - heavy duty with hydraulic raise and lower to pull rear mounted implements.

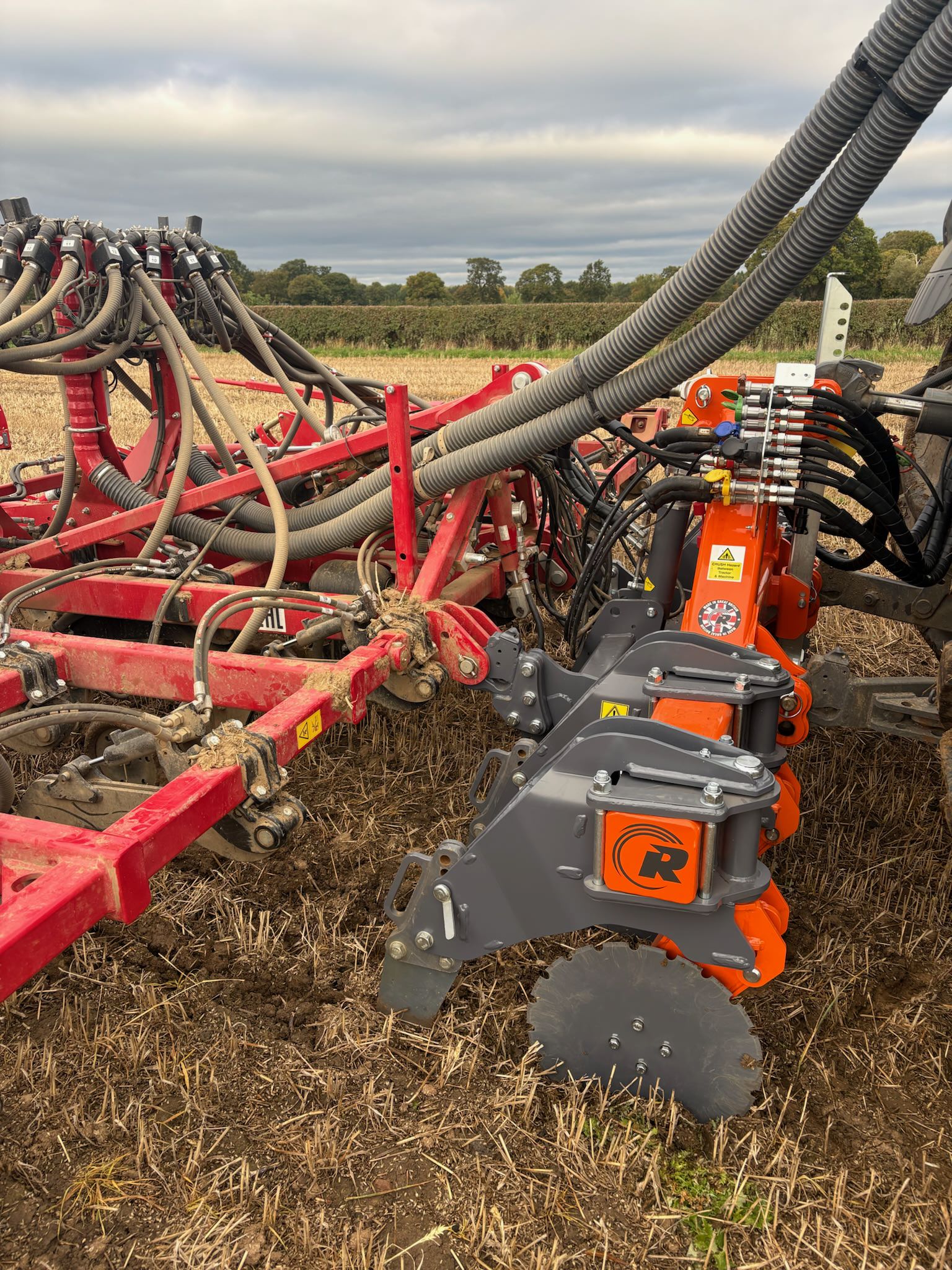

- Umbilical transfer system - to convey hydraulic and electrical services to rear mounted implements.
Options:
- Extra legs (up to 6) - for full width low disturbance operation.
- Optional Stocks Ag Seeding Equipment- ability to drill OSR & cover crops.
- Rear packer roller (flat or ribbed) - for stand alone operation.
- Alternative legs & points - customers preferred legs/points can be fitted.
- Auto Reset - where conditions will cause repeated interference with legs.
Features
Product Images
Main features
The Track E-Radicator S is designed for tractors up to 400 HP, and the HD version for machines up to 650 HP.
- 3 m toolbar with either 2 or 4 legs & points with tungsten tips – longer lasting for reduced running costs & downtime
- Adjustable leg positioning via frame clamping system to suit tractor wheel/track width and centres
- Wide range of legs and points for different operations and depths – adjustable without tools
- Shearbar or Auto Reset protection for legs
- Heavy-duty pivoting discs & legs – enables manoeuvrability around obstacles, headland following, and steering pressure resistance
- Rear linkage & drawbar – heavy-duty, hydraulically raised and lowered, to pull rear-mounted implements
- Umbilical transfer system to convey hydraulic and electrical services to rear implements
Product Specification
Model Comparison Table
| MODEL | NO. OF LEGS | AUTO RESET | SHEARBOLT | MAXIMUM DEPTH | LEG OPTIONS | MAXIMUM HP |
|---|---|---|---|---|---|---|
| Track E-Radicator S | 2 or 4 | Yes | Yes | 300 mm | Yes | 400 HP |
| Track E-Radicator HD | 2 or 4 | Yes | Yes | 500 mm | Yes | 650 HP |
Product Videos
Ryetec Restorer Track Eradicator Video
Frequently Asked Questions
The Track Eradicator S is rated for tractors up to 400 hp and works to a maximum depth of 300 mm. The Track Eradicator HD is rated up to 650 hp with a maximum depth of 500 mm. Both models are offered with 2 or 4 legs and with shearbolt or Auto Reset leg protection.
Yes, the Track Eradicator uses a frame clamping system so each leg can be positioned exactly relative to the tractor's wheel or track width and wheel centres. Legs and points can be changed and adjusted without tools, and customer-preferred legs and points can be specified.
A low disturbance subsoiler relieves compaction below the surface without inverting the soil or leaving a rough finish. On Ryetec Restorer machines, a large cutting disc slices the surface ahead of each low disturbance point, so the pan is fractured to improve drainage and rooting while surface disturbance is kept to a minimum.
Choose the Restorer ALD-S for a versatile 3–8 m toolbar that works front or rear mounted with a drill or cultivator; the ALD-E as a stand-alone arable subsoiler with packer; the PHT to run close-coupled ahead of a PTO power harrow; the Track Eradicator to target wheelings; the GLD for grassland; or the Riot for one-pass subsoiling, mixing and consolidation.
Shearbolt or shearbar protection is the simpler option: a bolt shears when a leg hits an obstruction and is replaced before carrying on. Auto reset lets the leg ride over the obstruction and return to work automatically, which saves downtime on stony ground. Most Ryetec Restorer models offer both; which one is standard depends on the model and working width.
