Ryetec Restorer Power Harrow Toolbar (PHT)
Ryetec Restorer Power Harrow Toolbar (PHT)
Agriculture, Cultivation

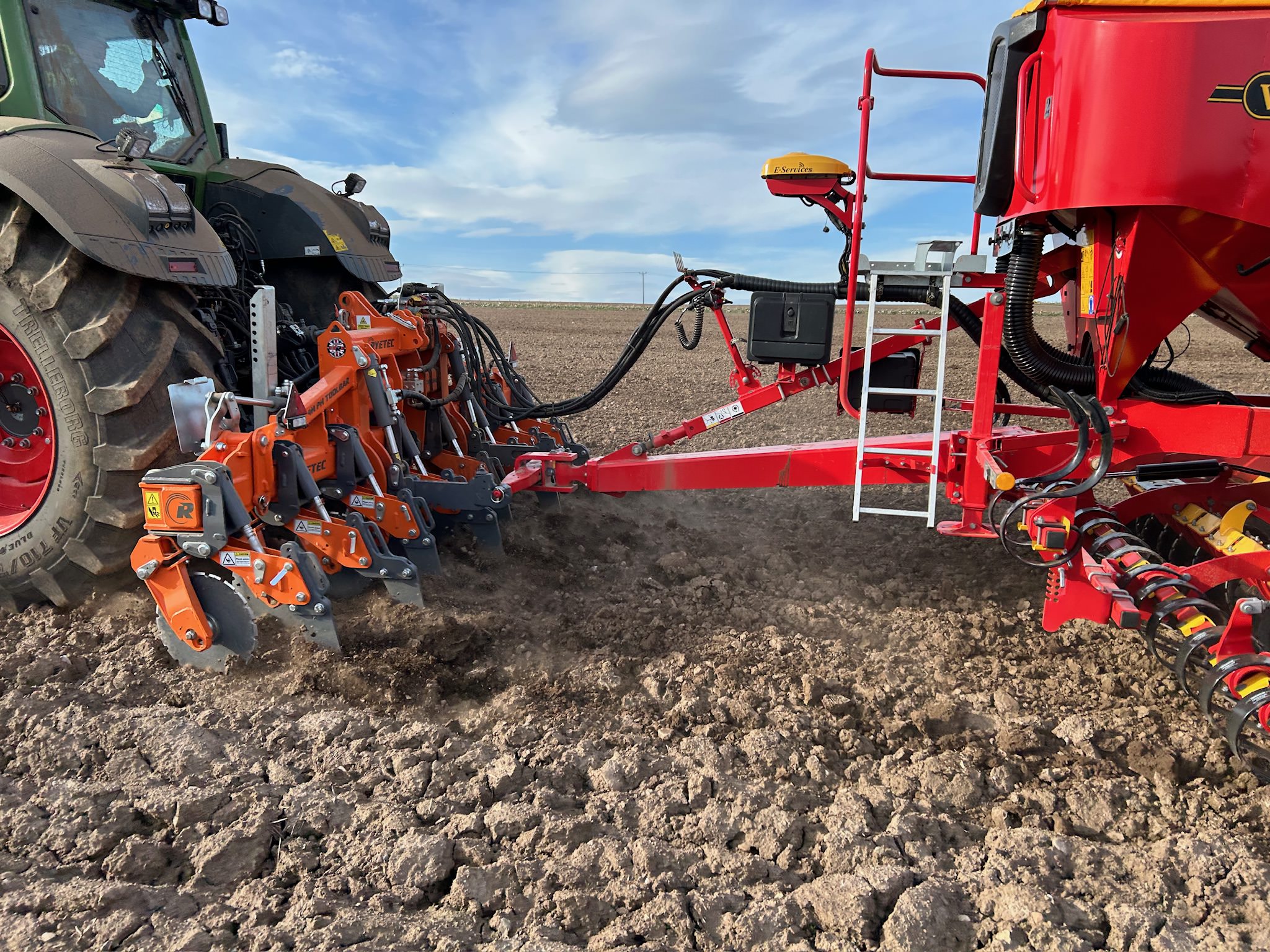

The Ryetec PHT has been designed for use as a close coupled toolbar for cultivation and drilling equipment to remove any compaction caused by previous operations prior to new crop establishment in a single pass.
Causing minimal surface ground disturbance with a large 450mm cutting disc and low disturbance point on a steering arm. The close coupled design and through the frame PTO facility allow for the mounting of PTO driven power harrows and combinations, relieving compaction and aiding drainage.
Available with either full Auto Reset or Shearbar system
Causing minimal surface ground disturbance with a large 450mm cutting disc and low disturbance point on a steering arm. The close coupled design and through the frame PTO facility allow for the mounting of PTO driven power harrows and combinations, relieving compaction and aiding drainage.
Available with either full Auto Reset or Shearbar system
Overview:
- Available as 3,4,5 & 6m working widths.
- Shearbar protection for legs - where conditions are unlikely to cause repeated obstruction of the legs (Auto reset option available).
- 20mm Hardox legs that are depth adjustable to 300mm – for high resistance to damage and wear with accurate and easy depth adjustment.
- Heavy duty pivoting discs & legs - allow for ease of manouvreability around obstacles.
Features

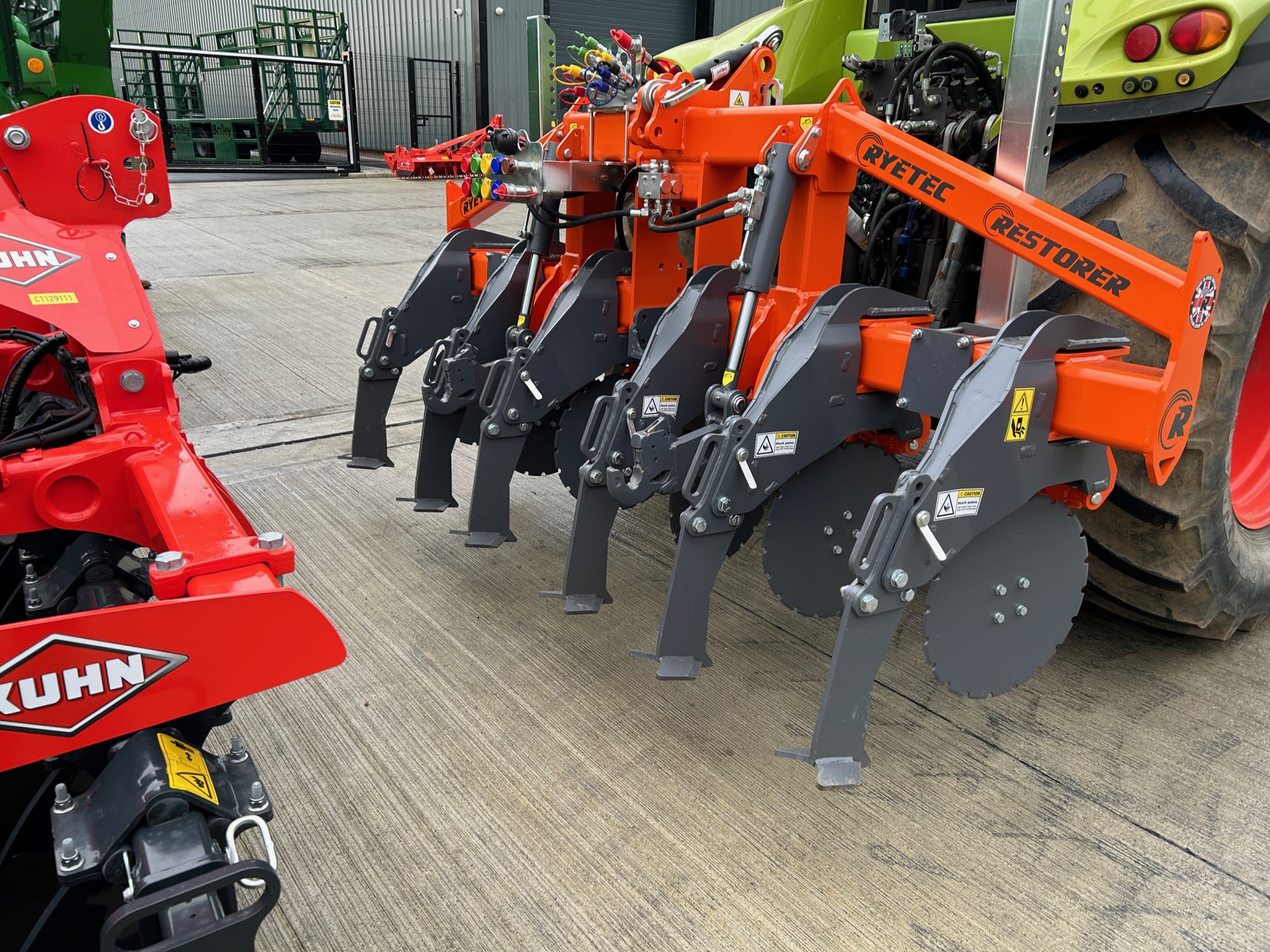

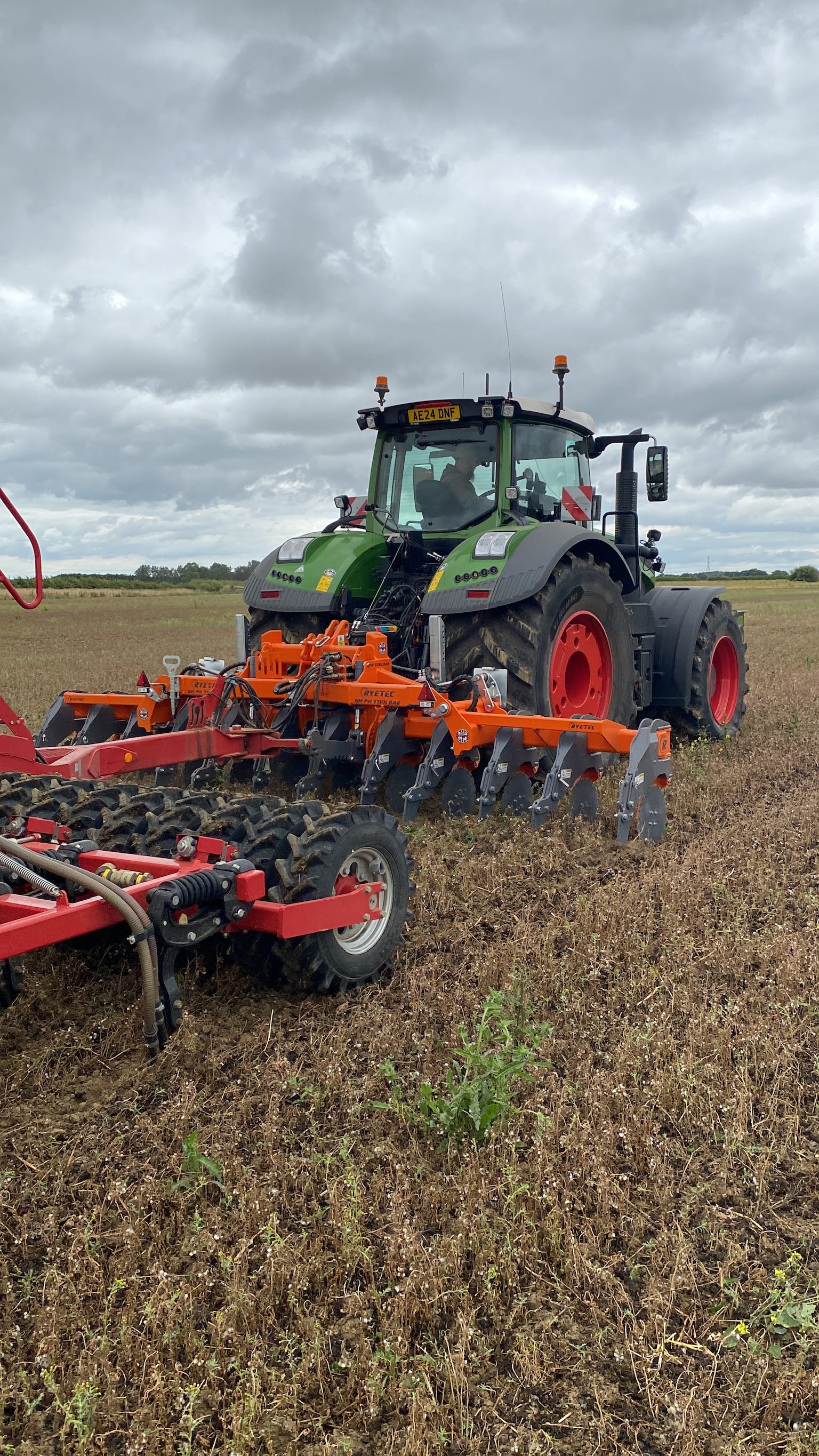

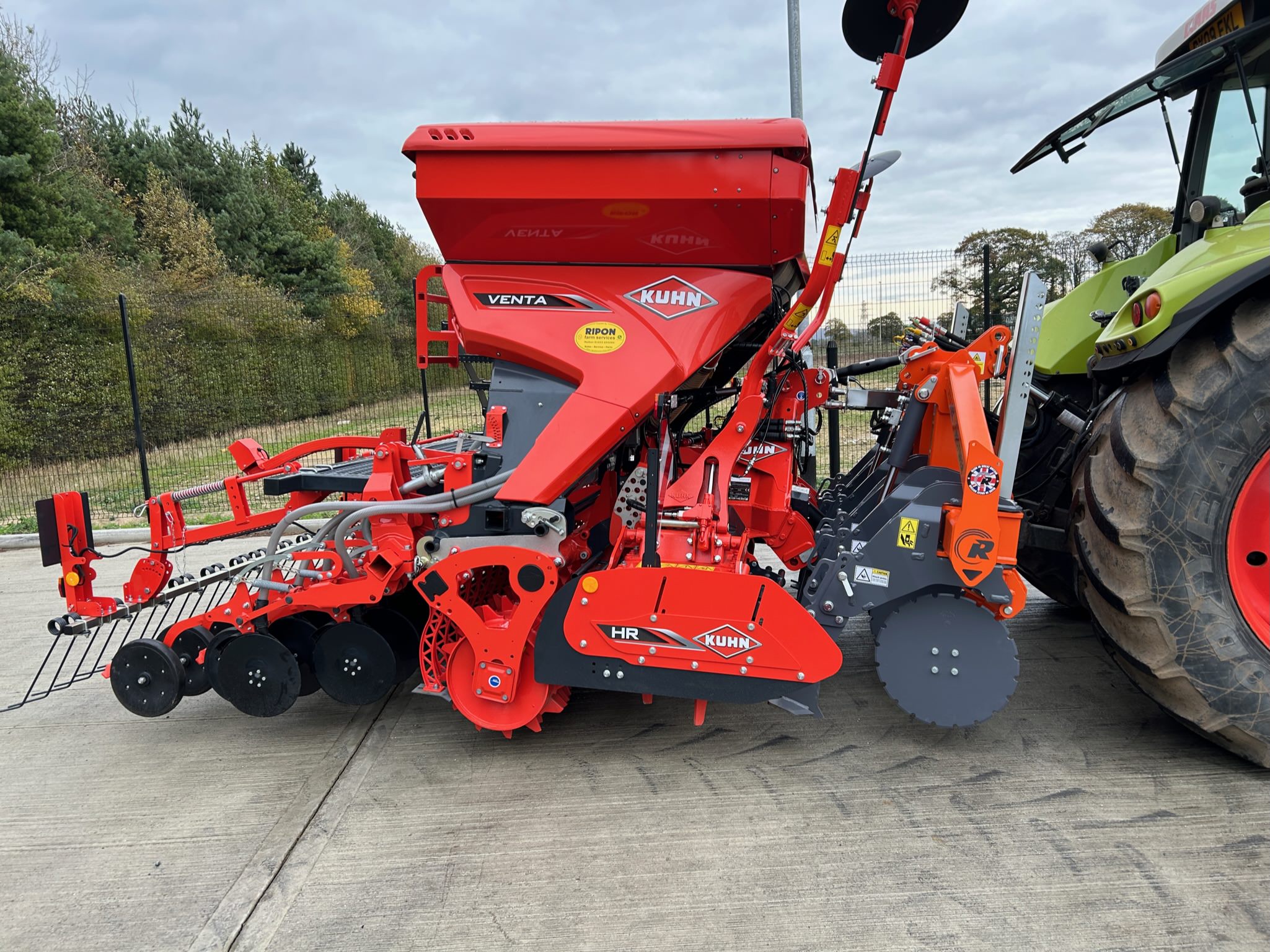

Product Images
Main features
- Easy no tools depth adjustable legs.
- Fully steering legs and discs reduce frame and leg stress as well as allowing for steering.
- Large diameter discs (450mm) with deep penetration minimise disturbance of the leg.
- Staggered leg mounts to allow trash to move between the legs.
- Maintenance free composite bushes on all pivot points.
- Shear bolt or Auto-Reset leg protection.
- Available in 3, 4, 5, 6 and 8m working widths.
Options:
- Can be fitted with a rear packer to work as a stand alone machine.
