Triflex Gang Flail Mower

Triflex Gang Flail Mower

Amenity, Flail Mowers, Mowers

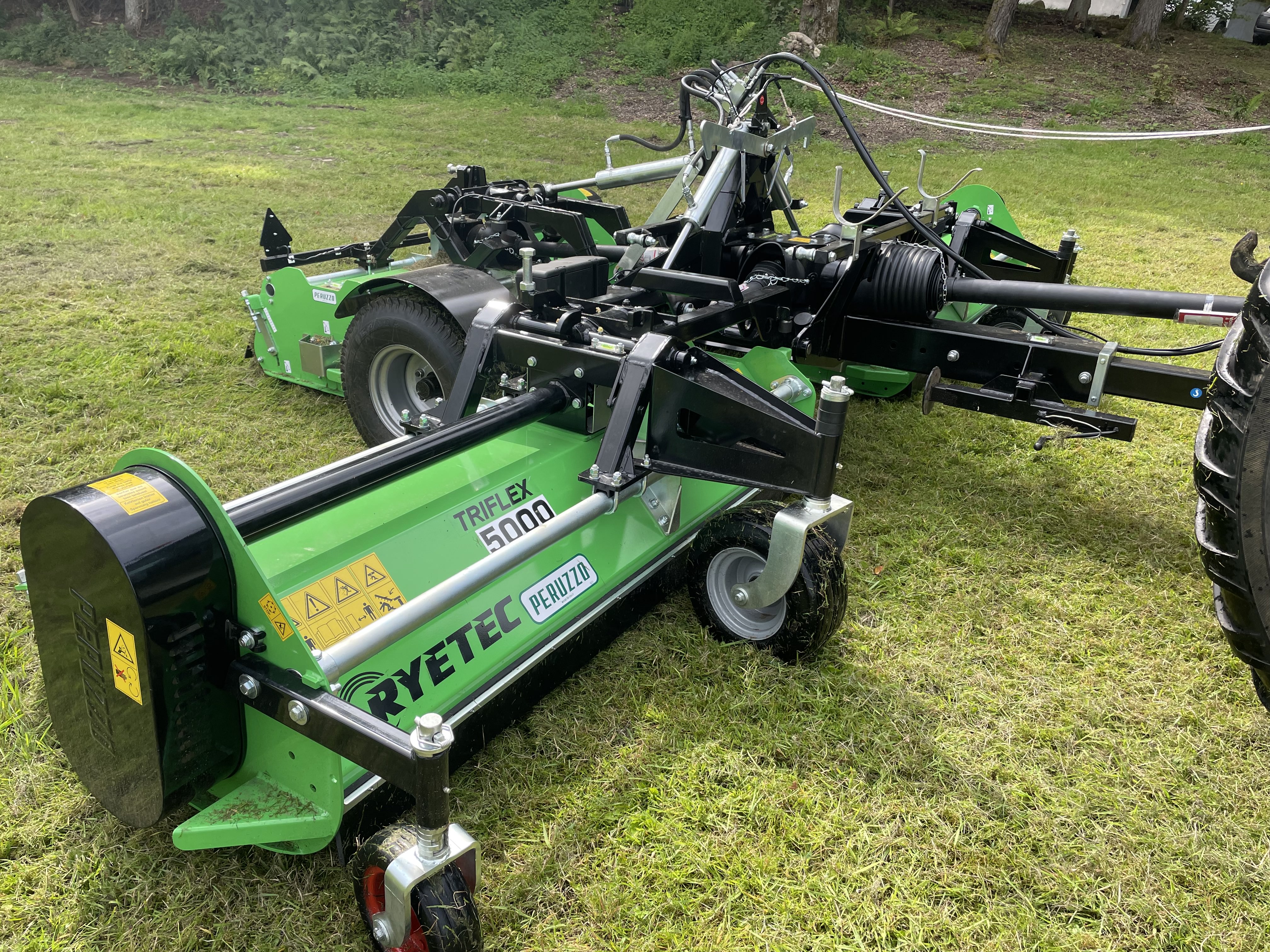

The Ryetec Triflex Gang Flail Mower offers a versatile and efficient solution for mowing large areas, delivering high-quality results comparable to cylinder and rotary mowers. Designed for commercial use, it handles both short and long grass in various conditions without clogging, ensuring an even spread of cuttings.

Overview:

  • Available in cutting widths of 4.2 meters and 5 meters for efficient large-area coverage.
  • Independent floating heads that follow ground contours to prevent scalping.
  • Fitted as standard with heavy-duty hammer flails for a finer finish while handling large volumes of thick grass.
  • Uniform cutting with an even spread of grass, even in wet conditions.
  • Easy to use with quick adjustments, suitable for all operator experience levels.
  • Low maintenance requirements, ensuring reliable and consistent performance.
  • Compact transport width of 2.25 meters with foldable heads and mechanical auto locks.

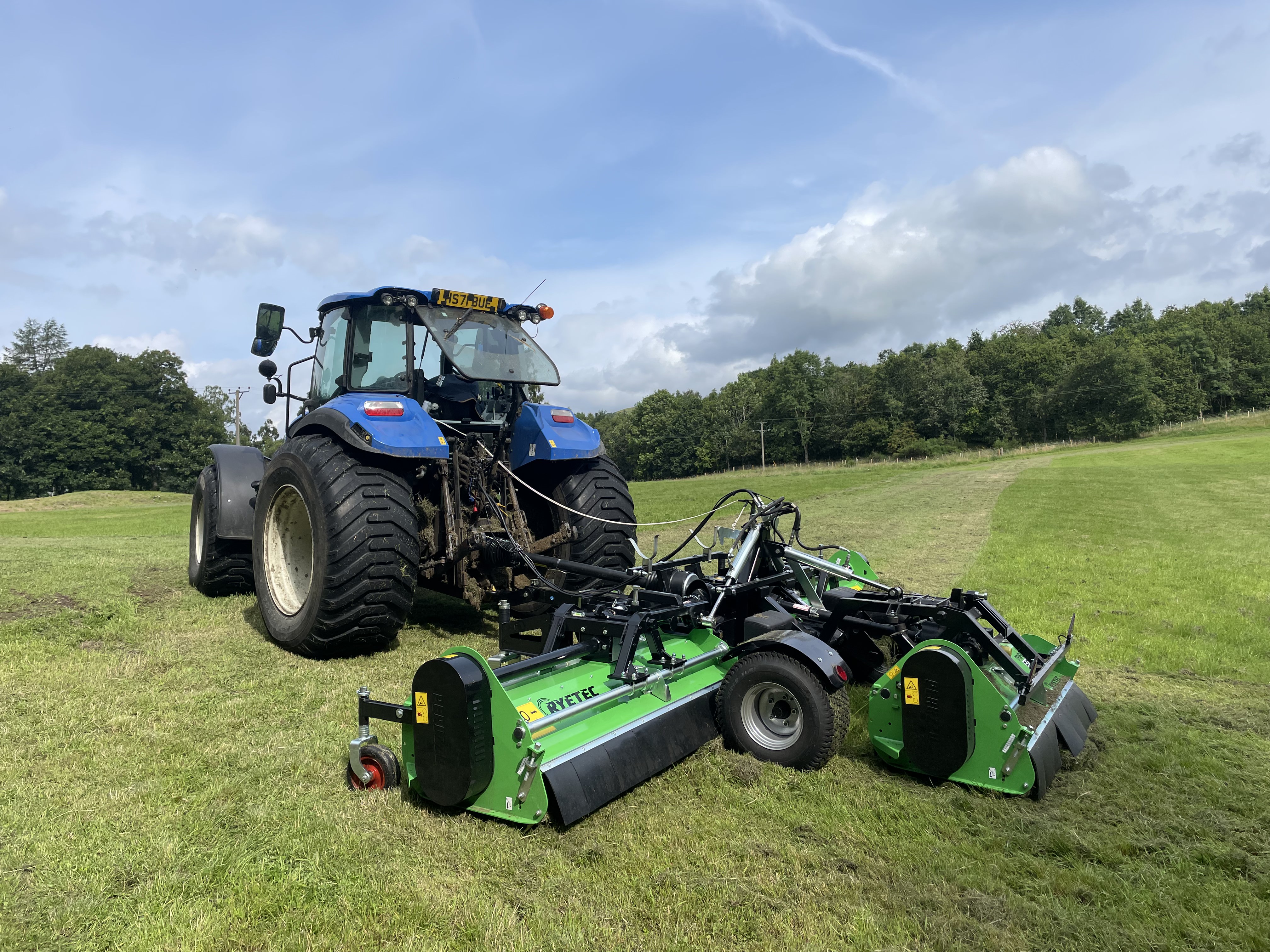

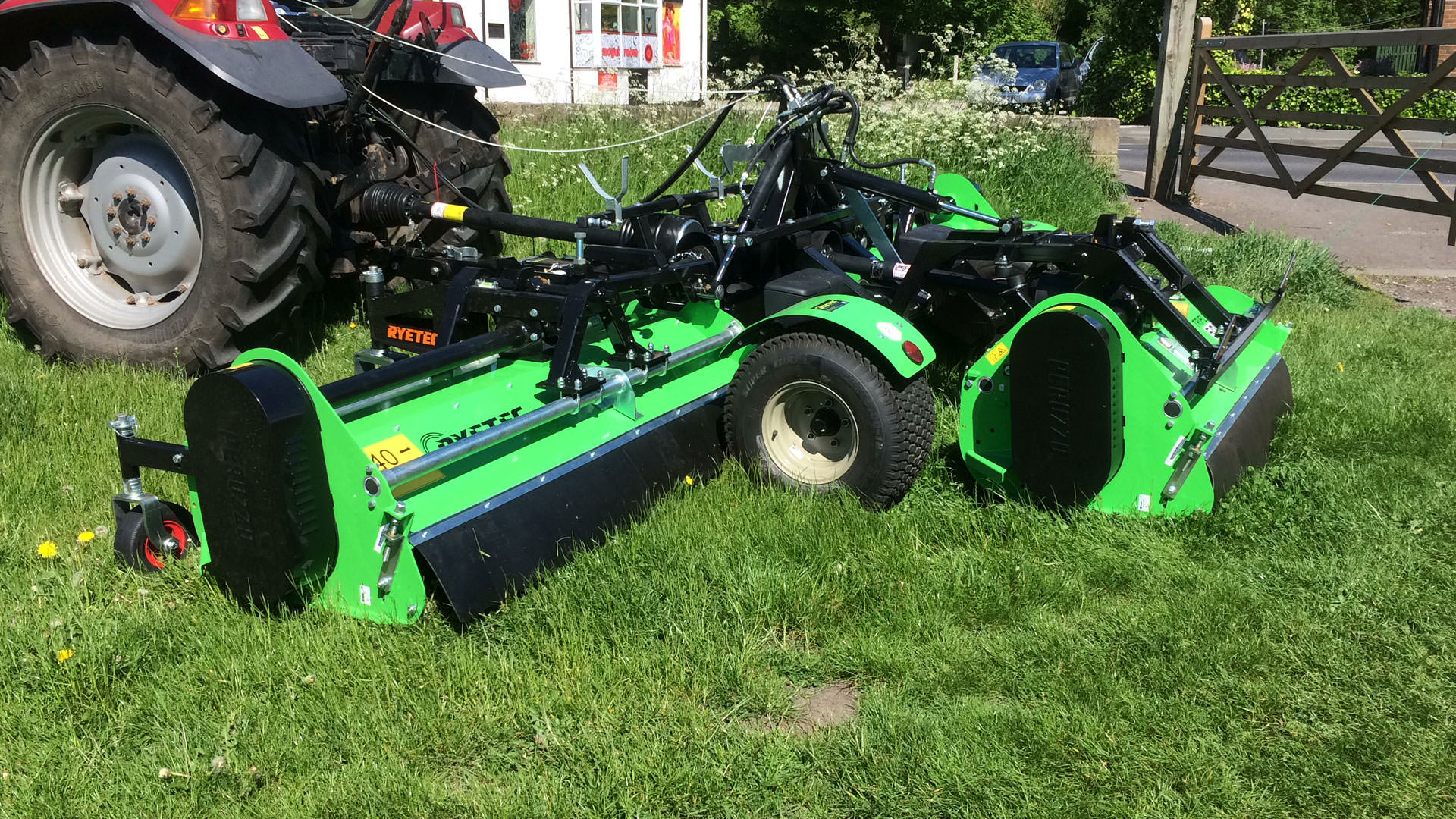

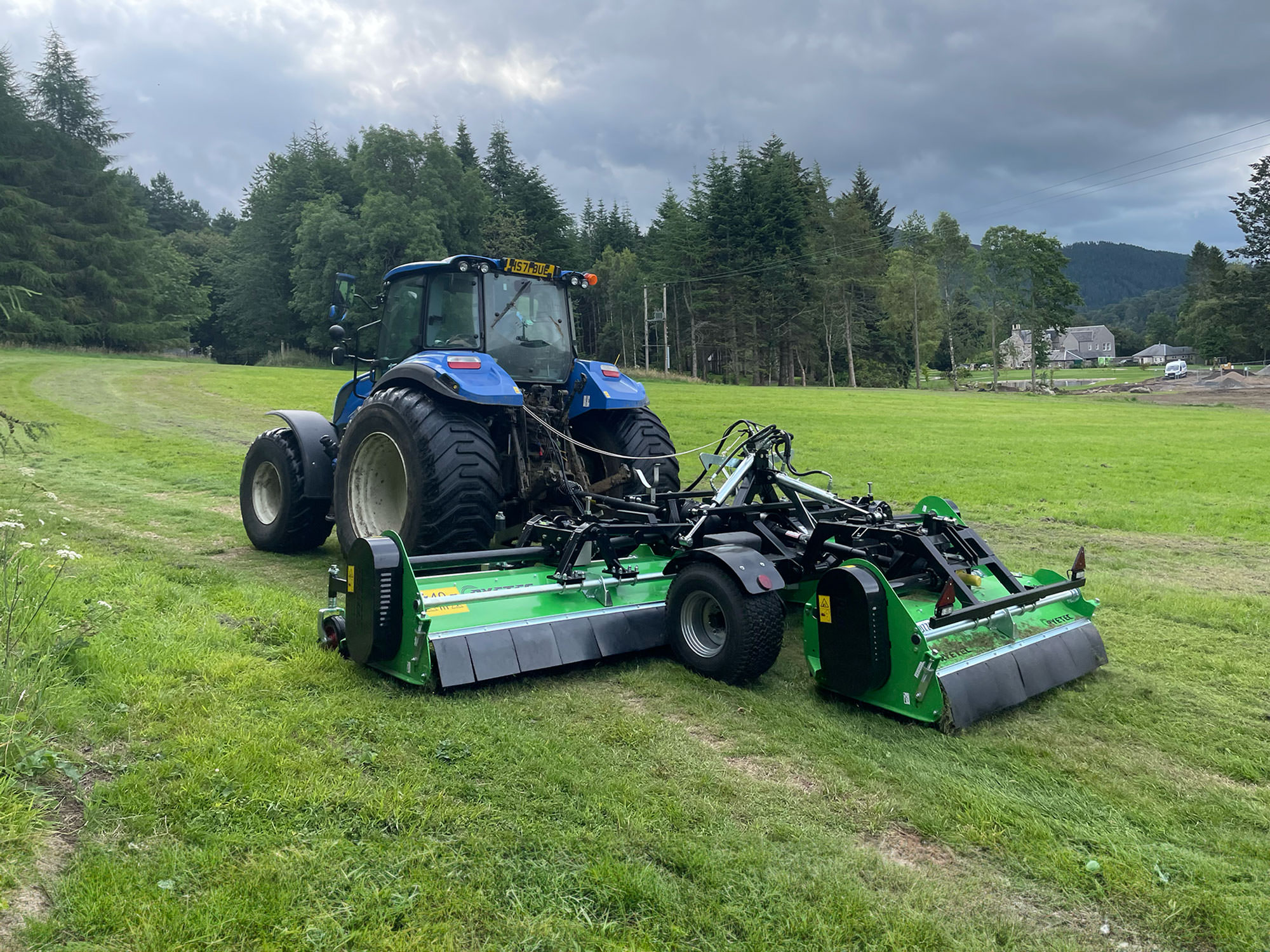

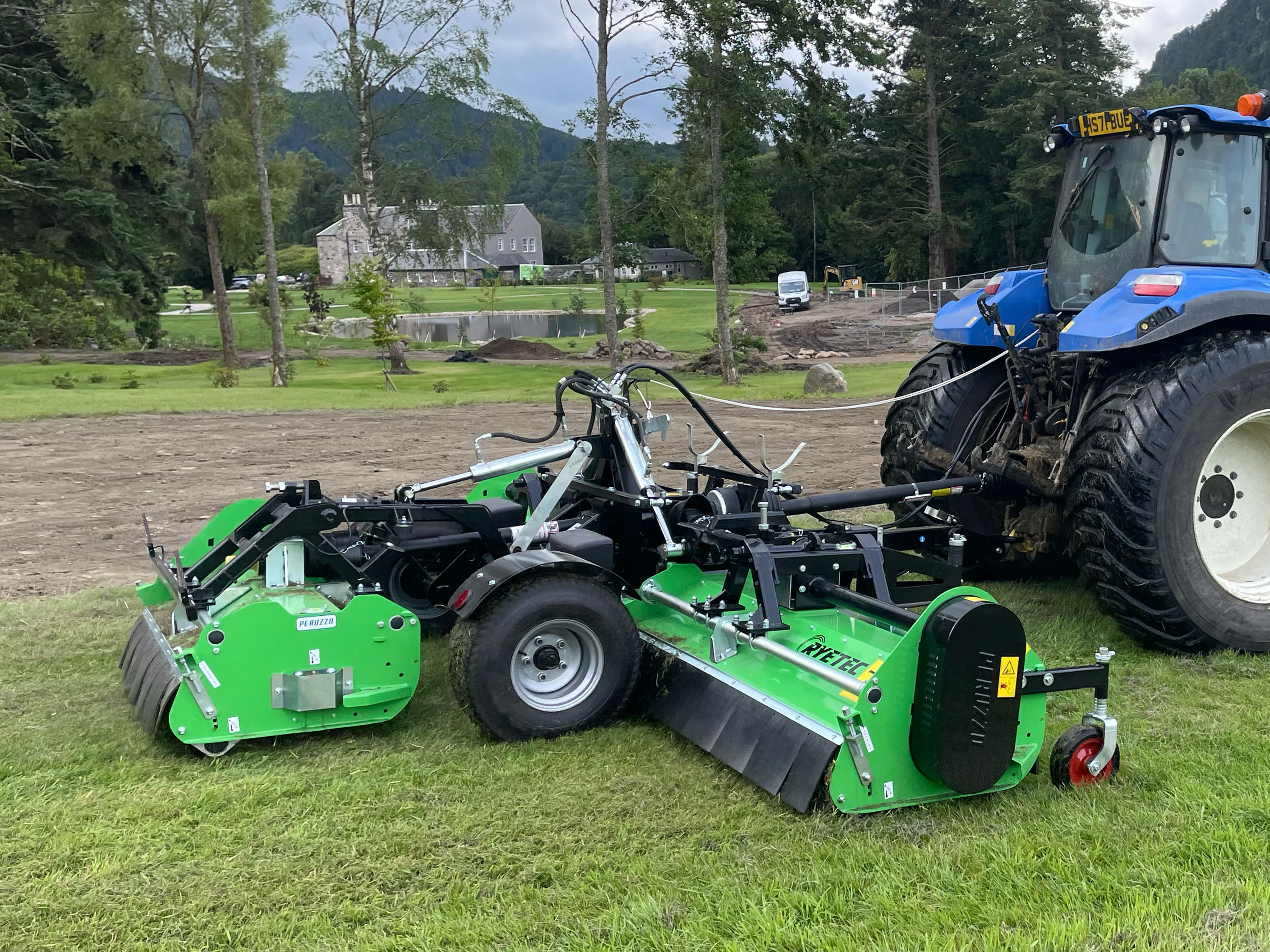

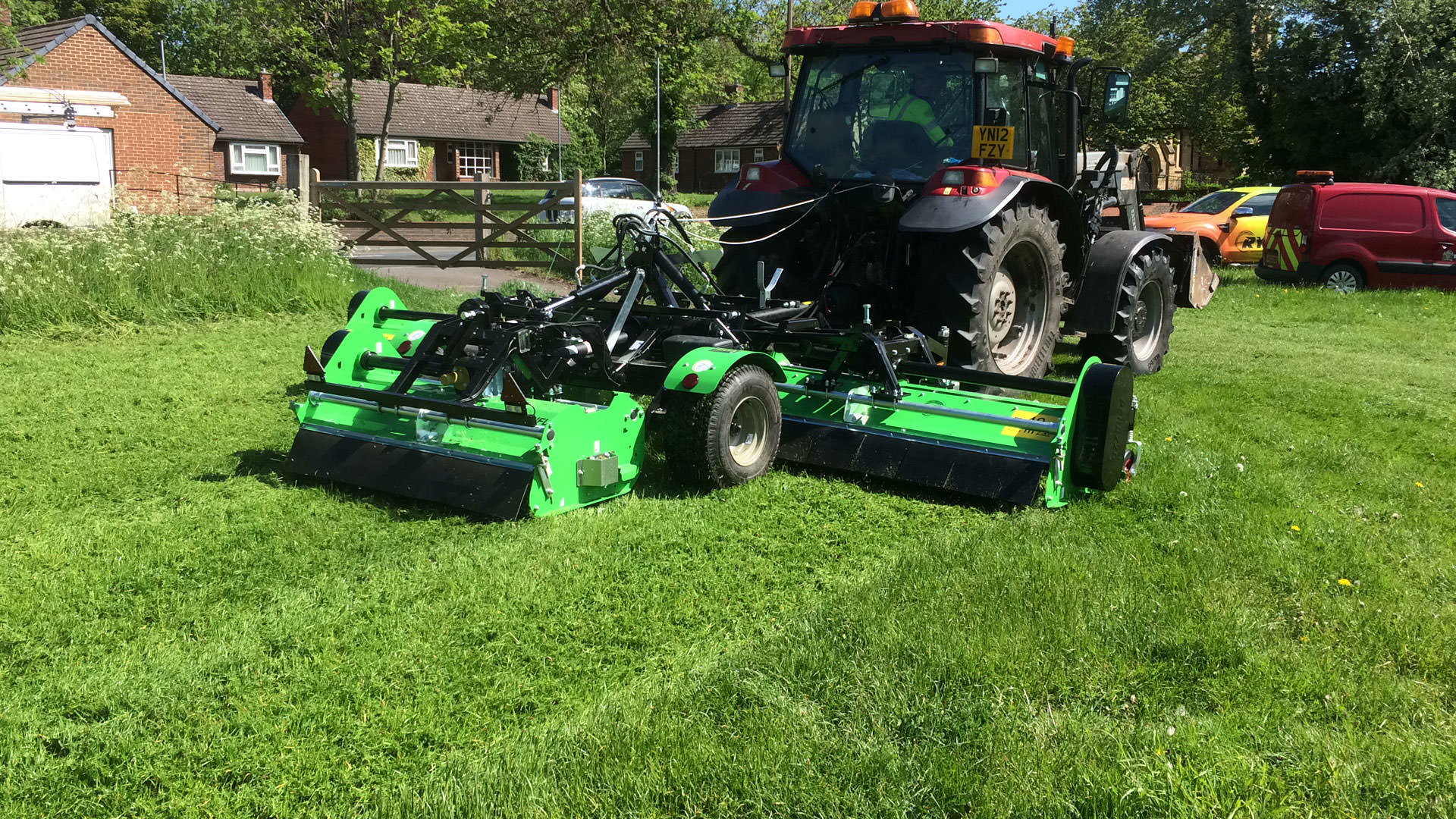

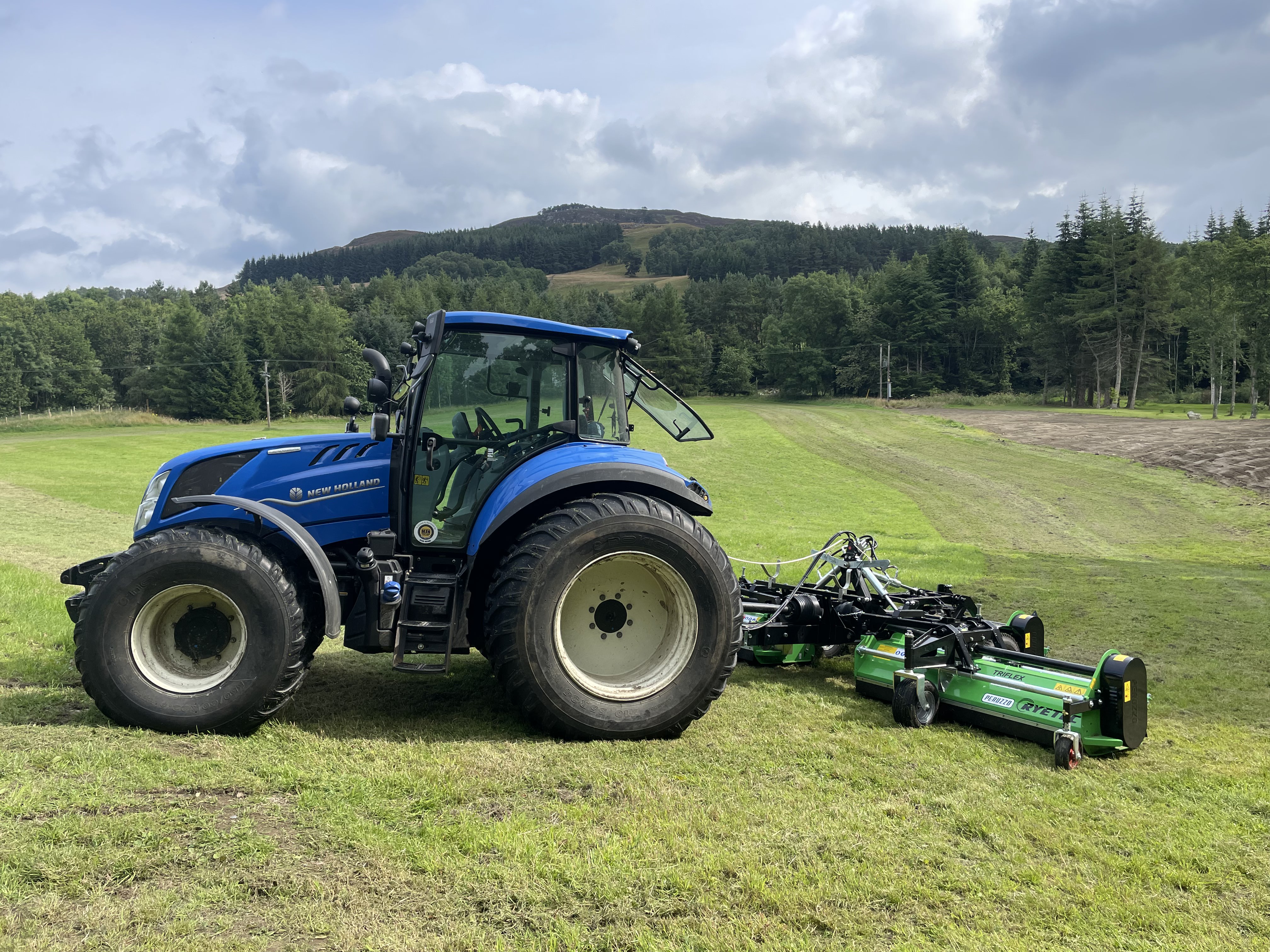

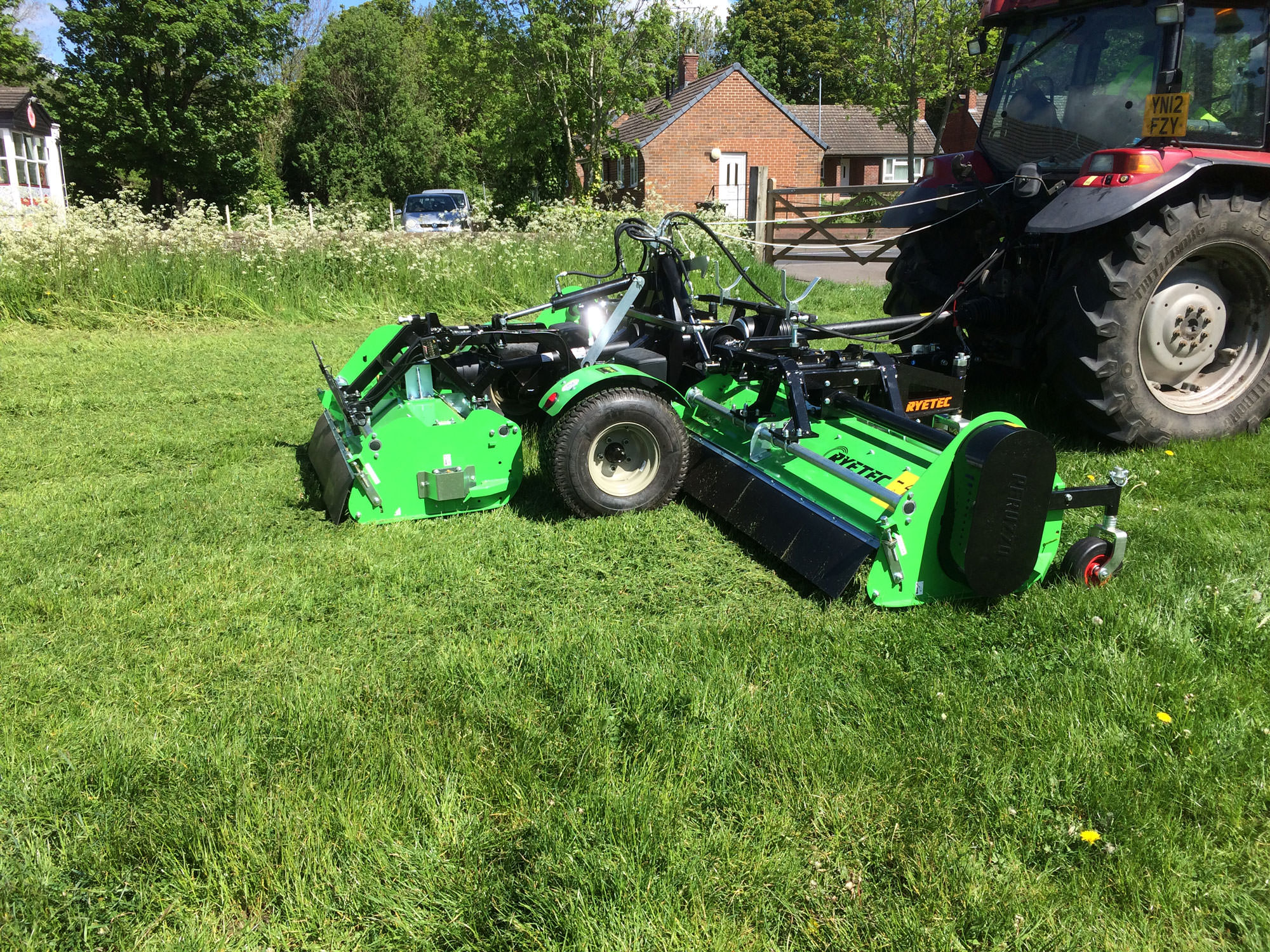

Product Images

Main features

  • Cutting Widths:
    The Triflex Gang Flail Mower is available in 4.2 meters and 5 meters cutting widths, making it suitable for efficiently covering large areas.
  • Independent Floating Heads:
    Three cutting heads that float both horizontally and vertically prevent scalping and follow ground contours, ensuring a consistent and professional cut.
  • Heavy-Duty Hammer Flails:
    Fitted as standard with heavy-duty hammer flails, the Triflex delivers a finer finish while being able to handle large volumes of thick grass, ensuring versatile performance in varied conditions.
  • Uniform Cutting:
    Designed to ensure an even spread of cut grass, the Triflex performs well even in wet conditions, maintaining a clean finish.
  • Ease of Use:
    With quick adjustments and straightforward operation, the Triflex is easy to use, even for less experienced operators.
  • Low Maintenance:
    The mower requires minimal upkeep, making it a reliable and cost-effective choice for commercial operations.
  • Transport and Storage:
    The cutting heads fold to a compact 2.25 meters width for safe road transport, and mechanical auto locks prevent accidental lowering during transport.
  • Hydraulic Operation:
    Hydraulic rams lift and lower the heads, with an optional system available that allows lifting of wing decks to avoid obstacles, including automatic drive disengagement.
  • Robust Construction:
    Heavy-duty gearboxes, oil-immersed shafts and bearings, and a triple V belt drive contribute to the mower's durability and longevity.
  • Safety Features:
    An overrun clutch protects the driveline, and the system quickly stops the rotor when the deck is lifted, enhancing operator safety.
  • Height Adjustment:
    Easily control cutting height through full-width rear rollers and front castor wheels, ensuring flexibility across different terrains.
  • Flexible Mowing:
    Operators can choose to mow with one, two, or all three heads, providing versatility in various mowing conditions.


Options


  • 540rpm PTO Option:
    Available with a 540rpm PTO option, while the 1000rpm PTO is standard.
  • Front Castor Kit:
    Available as an option for additional stability (standard on Triflex 5000).
  • Auto Shut-Off of Wing Decks:
    Allows the operator to raise one deck while the other two continue cutting, enhancing efficiency.
  • Front Roller Kits:
    Available for added precision and improved mowing performance.


Applications


  • Large Green Areas:
    Ideal for parks, sports fields, airports, and other extensive green spaces.
  • Various Grass Conditions:
    Suitable for mowing both short and long grass in a variety of conditions, including wet environments.

Product Specification

ModelWidth of cut mmWeight kg No. of hammer flails Minimum tractor hp Anti-scalp wing deck castor kit
Triflex 4200 420017007270Optional
Triflex 5000 500018008480Standard

Standard specification is for 1000rpm. Optional gearbox to convert to 540 rpm PTO

Product Videos

Triflex Gang Flail Mower Video
